Step 6

5. Connect the batteries to the BATTERY INPUT. (Step4)

WIRING FAULT LED will illuminate and make an audible alarm to indicate the wiring polarity is

reversed only when the DC circuit breaker is off.

*Note: Please make sure the DC circuit breaker is off before connecting the battery to the machine.

6. If the battery box or the battery connection has a switch, please turn it on first.

7. Turn on the BATTERY SW. on the back of the machine (Step 5)

8. Turn on the Power Switch and switch the Output Selector to Normal

on the front panel. The Power On Indicator and the LCD Module

Display will blink 4 times. Press the Display Toggle (Selected

Switch) once. The output voltage showing on the LCD Module

Display should be 220V. This completes the start-up process.

(Step 6)

9. Press and hold the Display Toggle switch for 4 seconds then

release. The machine will begin a self test and enter Battery Mode

for 6 seconds before returning to Line Mode. Make sure the self

test is ready, or see the Definitions for illuminated LCD on page

13 for a list of alarm code definitions.

10. After ensuring the machine works normally, reassemble the back cover. The installation is now

complete.

11. When the external battery needs to be maintained or replaced remember to turn the machine off.

Once off, remove the AC power source and switch off the BATTERY SW. before maintenance or

replacing the batteries. When the work is complete, please start from Step 1 to re-install the machine.

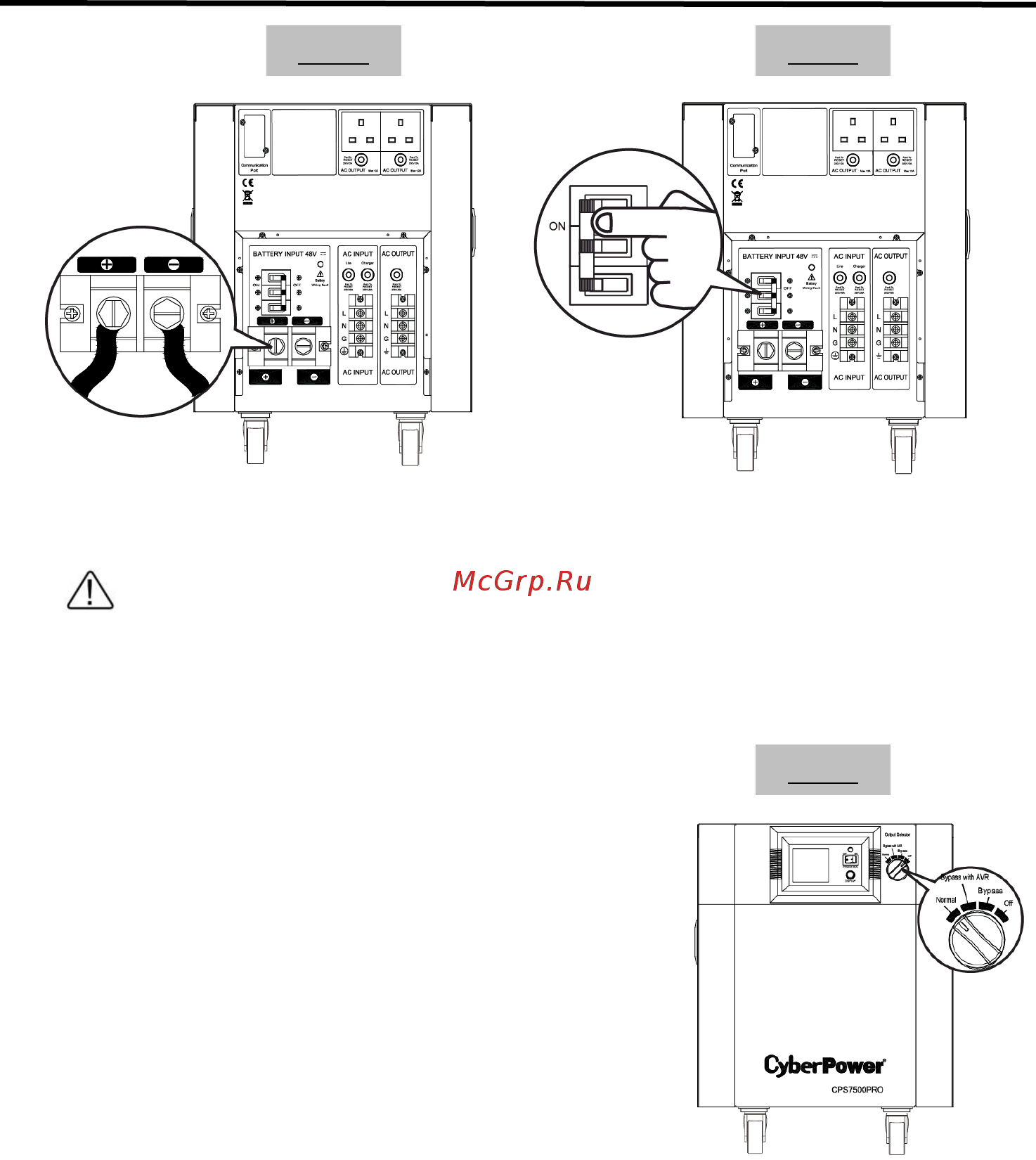

Step 4

Step 5
