Managing System Configuring System Info
User Guide
9
2
Configuring System Info
With system information configuration, you can:
View the system information
Specify the device description
2.1 Viewing the System Information
Choose the menu System > System Info to load the following page. You can view the basic
system information of the switch.

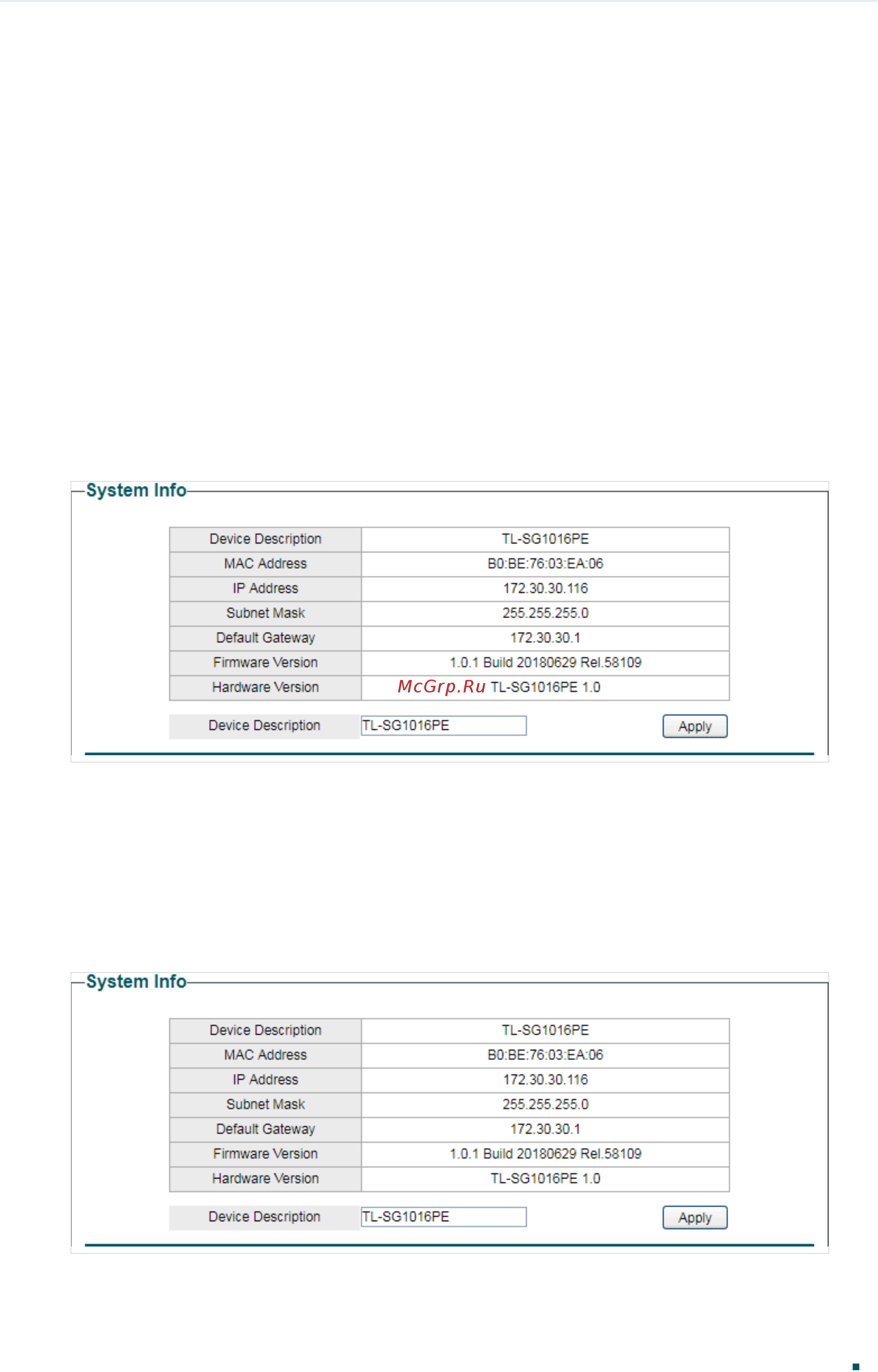

Figure 2-1 Viewing the System Summary
2.2 Specifying the Device Description
Choose the menu System > System Info to load the following page. Specify a new device
description for the switch, and click Apply.
Figure 2-2 Specifying the Device Description
