Tp-Link TL-SG1024DE V3 [56/86] Configuring the pvid

User Guide 52

Configuring VLAN Configuring 802.1Q VLAN

4.2 Configuring the PVID

Choose the menu VLAN > 802.1Q PVID Setting to load the following page.

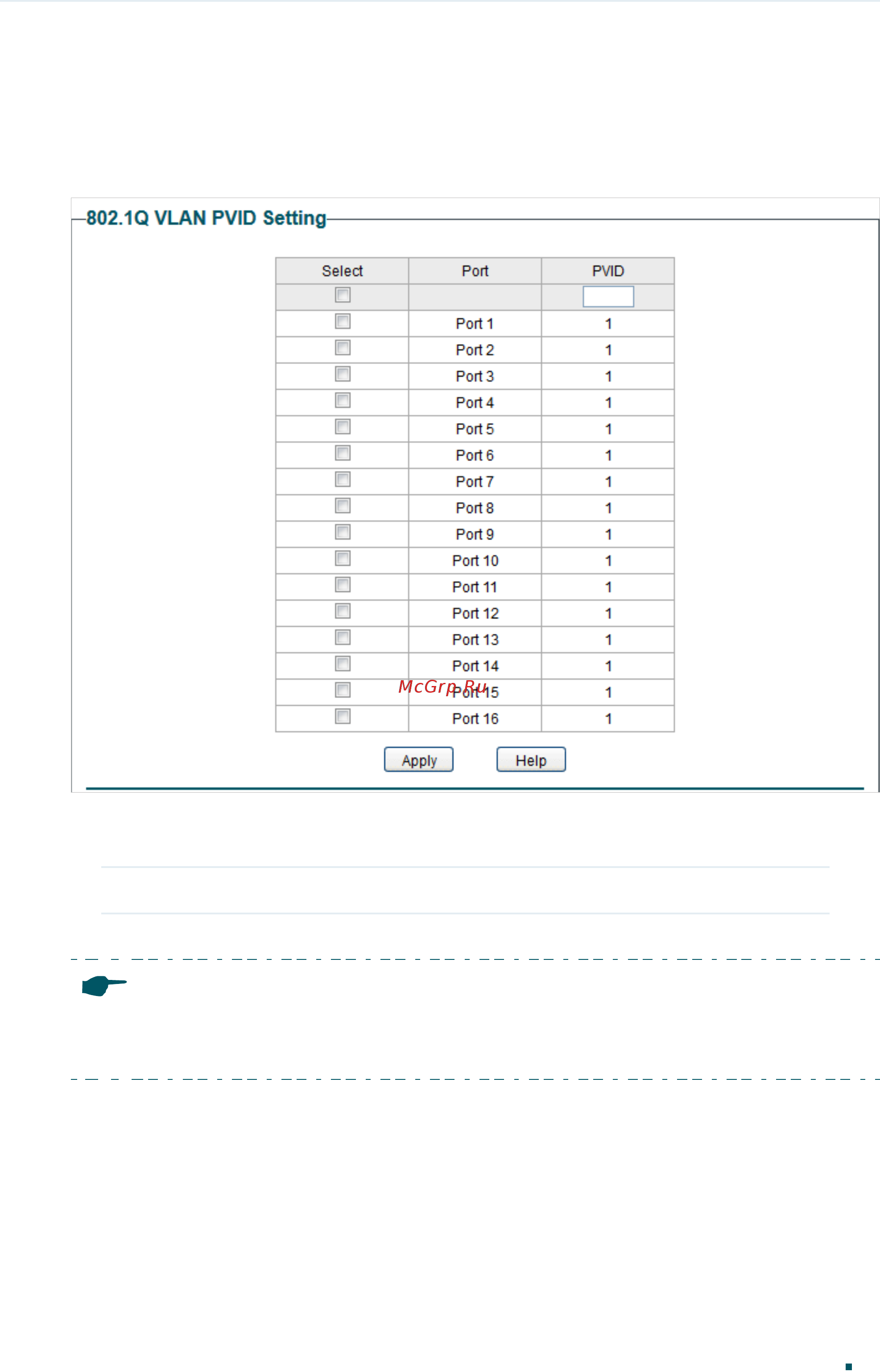

Figure 4-2 Configuring 802.1Q PVID

Follow these steps to configure the PVID:

1) Select the ports and set the PVID for the ports.

PVID Set the PVID for the ports. The PVID ranges from 1 to 4094.

2) Click Apply.

Note:

•

The PVID configuration will take effect only when 802.1Q VLAN mode is enabled.

•

You can specify a PVID only when the corresponding VLAN exists.
