User Guide 18
Managing System Upgrading the Firmware
8
Upgrading the Firmware
Choose the menu System > System Tools > Firmware Upgrade to load the following
page.

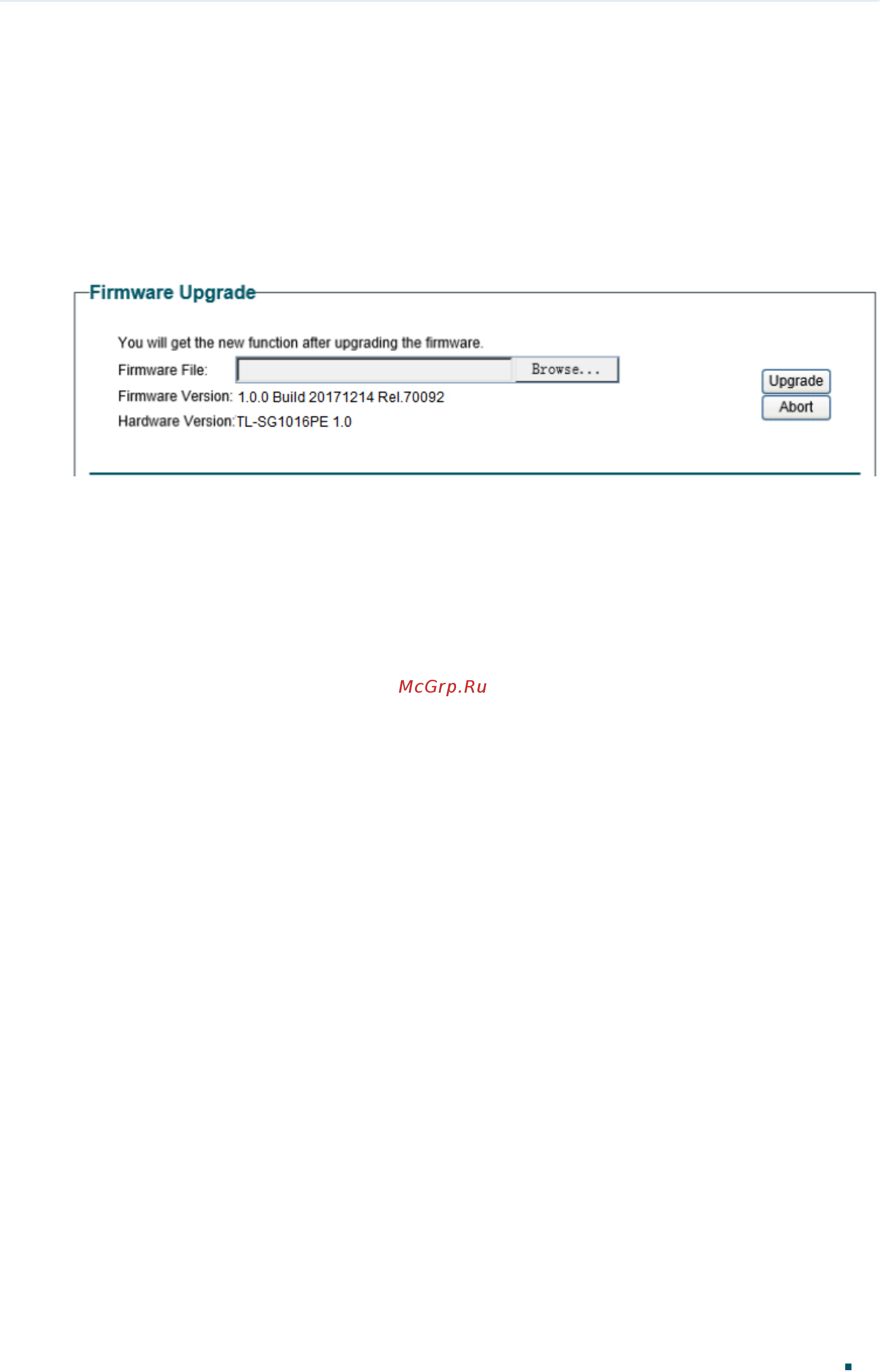

Figure 8-1 Being Ready to Upgrade the Firmware
