Managing System Upgrading the Firmware
User Guide
19
Follow these steps to upgrade the firmware:
1) Click Choose File to load the following page. Specify the firmware file path and select
the firmware to upgrade.

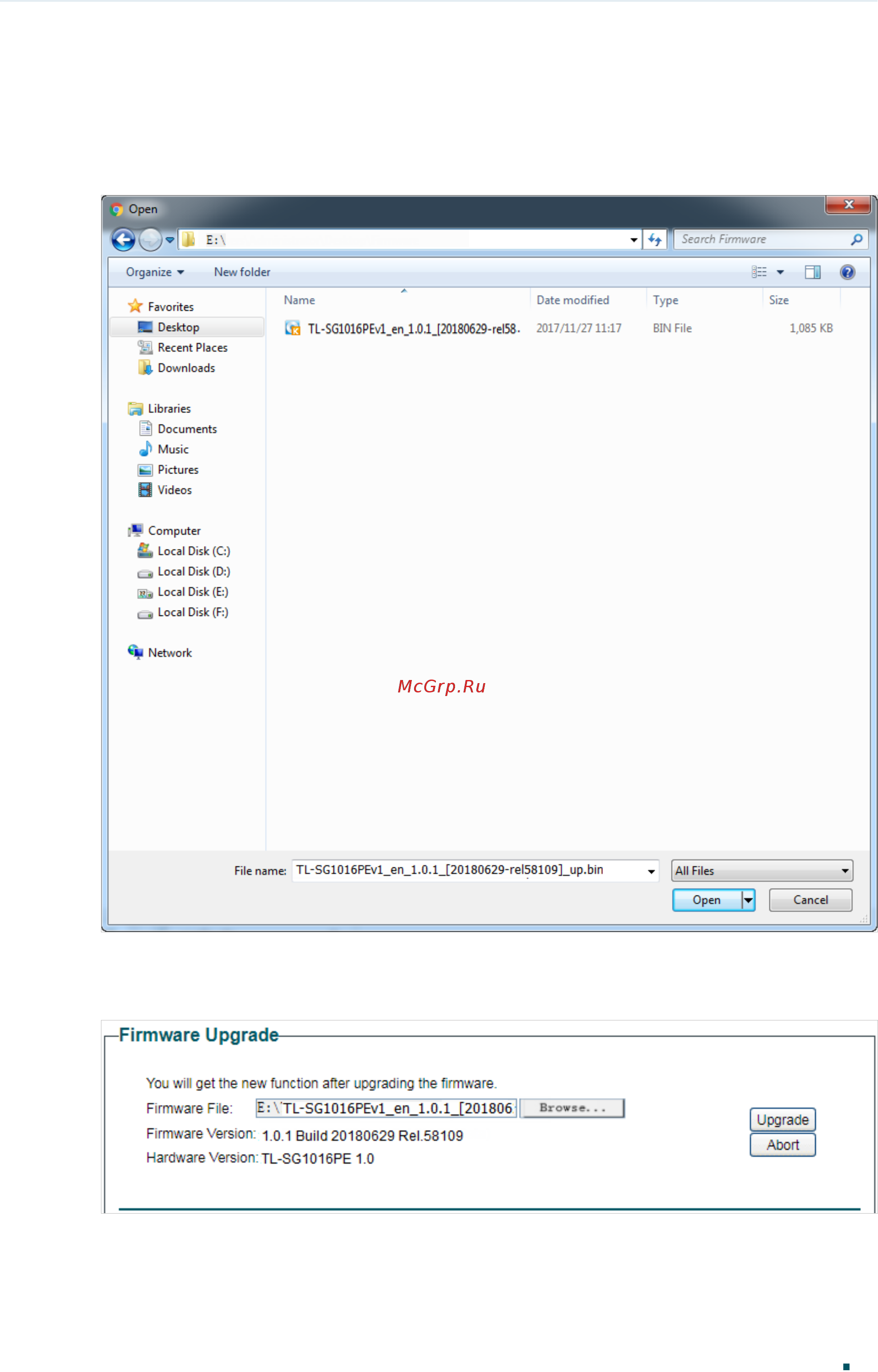

Figure 8-2 Browsing the Firmware File
2) Click Open and the following page will be displayed. Click Upgrade.
Figure 8-3 Upgrading the Firmware
