- 13 - Hardware Installation Process
English
Step 4: Connect ribbon cables, cabinet wires, and power
supply

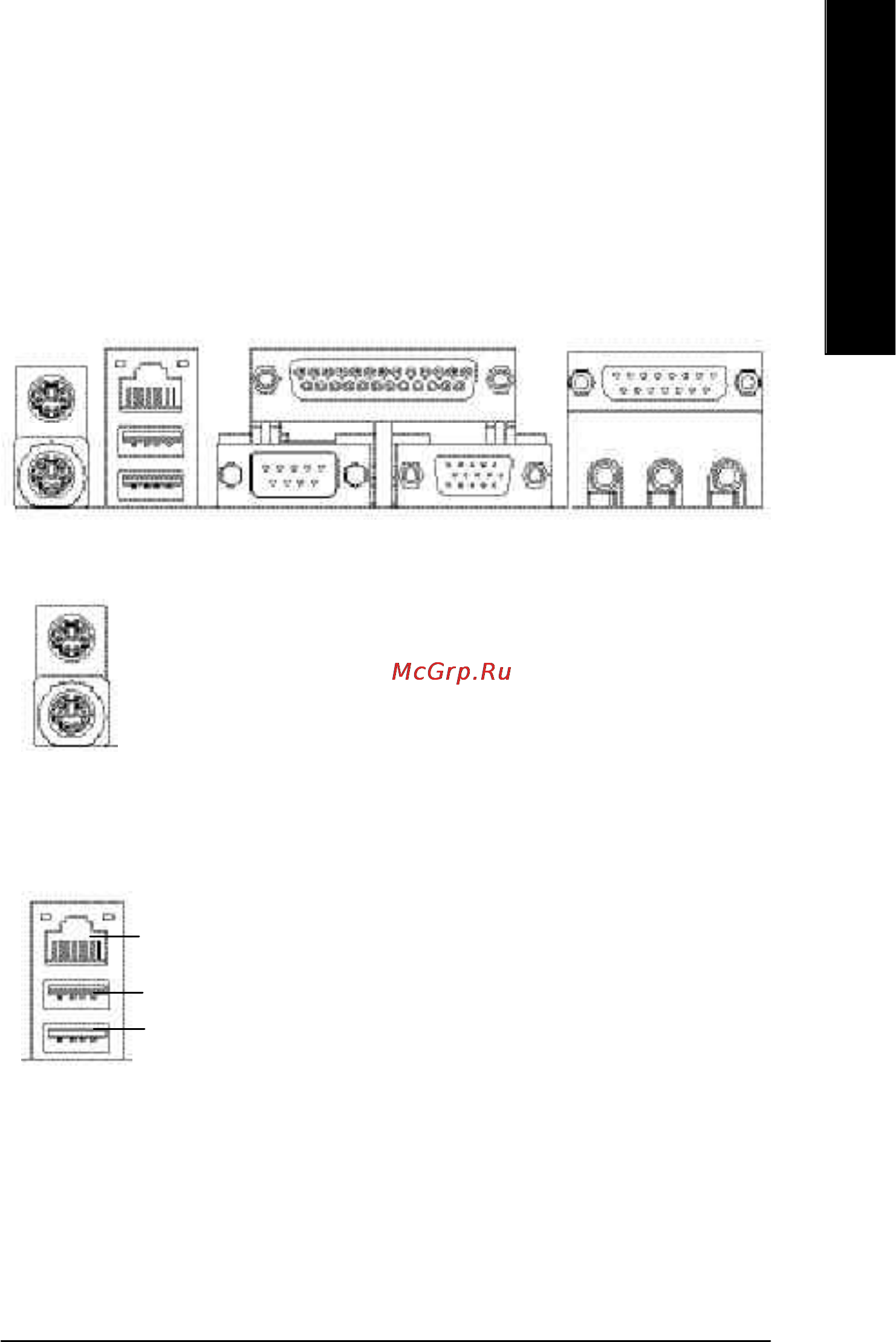

Step 4-1: I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse Connector
ØThis connector supports standard PS/2 keyboard
and PS/2 mouse.
v USB Connector
Ø Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker..etc. Have a standard USB interface.
Also make sure your OS supports USB controller.
If your OS does not support USB controller, please
contact OS vendor for possible patch or driver
upgrade. For more information please contact your
OS or device(s) vendors.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
u
v(*) w
x
y
USB 0
USB 1
LAN(*) Connector
“ * ” Only for GA-8GEMT4.
