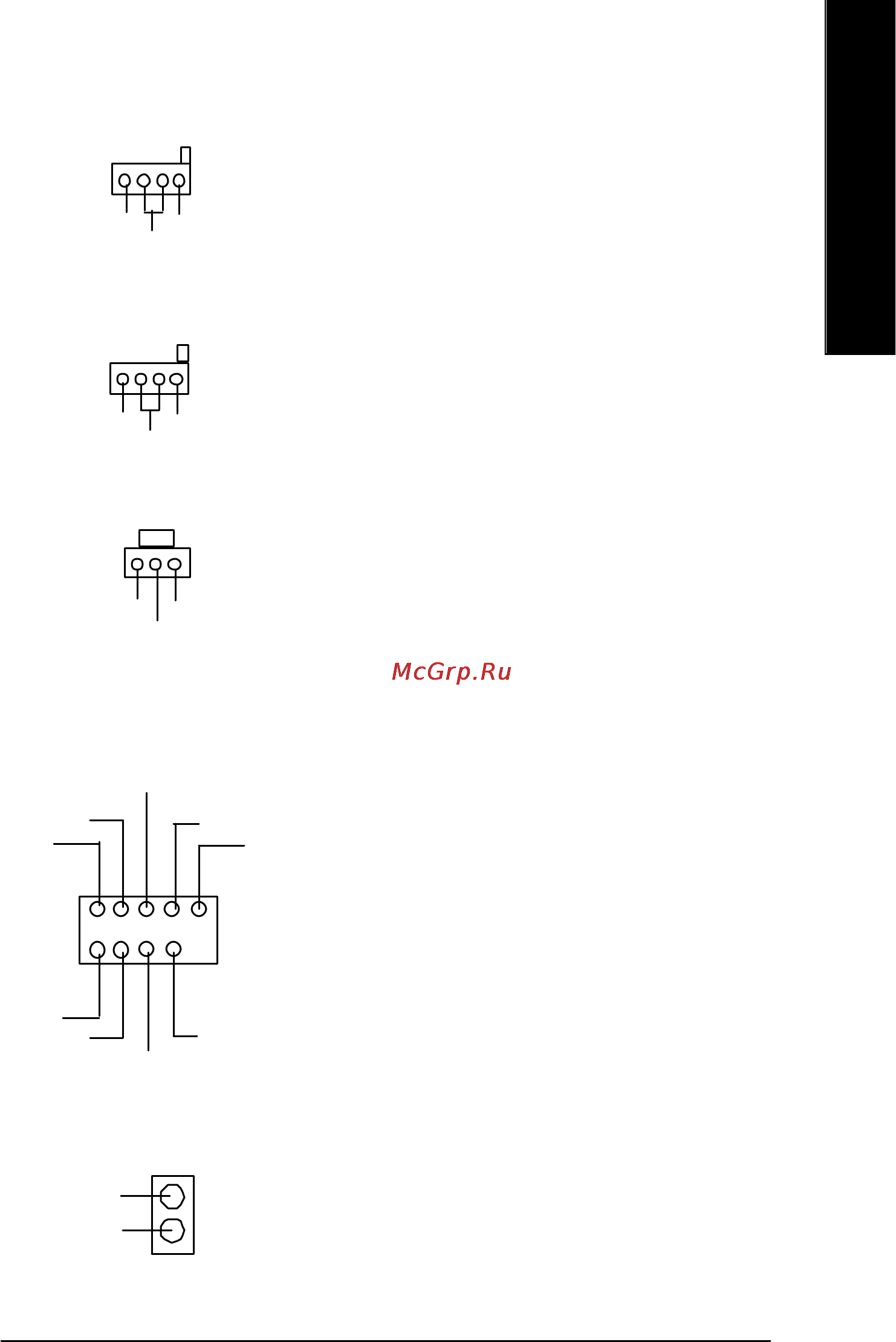

- 19 - Hardware Installation Process
English
12) CD_IN (CD Audio Line In)
Ø Connect CD-ROM or DVD-ROM audio out
to the connector.
13) AUX_IN (AUX In Connector)
Ø Connect other device(such as PCI TV Tunner
audio out )to the connector.
CD-R
CD-L
GND
1
AUX-R
AUX-L
GND
1
14) SPDIF_O
Ø The SPDIF output is capable of providing
digital audio to external speakers or com
pressed AC3 data to an external Dolby
Digital Decoder. Use this feature only when
your stereo system has digital input
function.
GND VCC
SPDIF Out
1
Ø Be careful with the polarity of the front USB
connector. Check the pin assignment while you
connect the front USB cable.
Please contact your nearest dealer for optional
front USB cable.
15 ) F_USB1/F_USB2 (F_USB1 ~ F_USB2 connector in yellow are for USB 2.0)
GND
USB Dy+
USB Dx+
GND
USB Over Current
USB Dx-
Power
Power
USB Dy-
1
16) CI (CASE OPEN)
Ø This 2 pin connector allows your system to
enable or disable the “Case Open” item in BIOS
if the system case begin remove.
1
GND
Signal
