- 20 -GA-8GEMT4 Series Motherboard
English

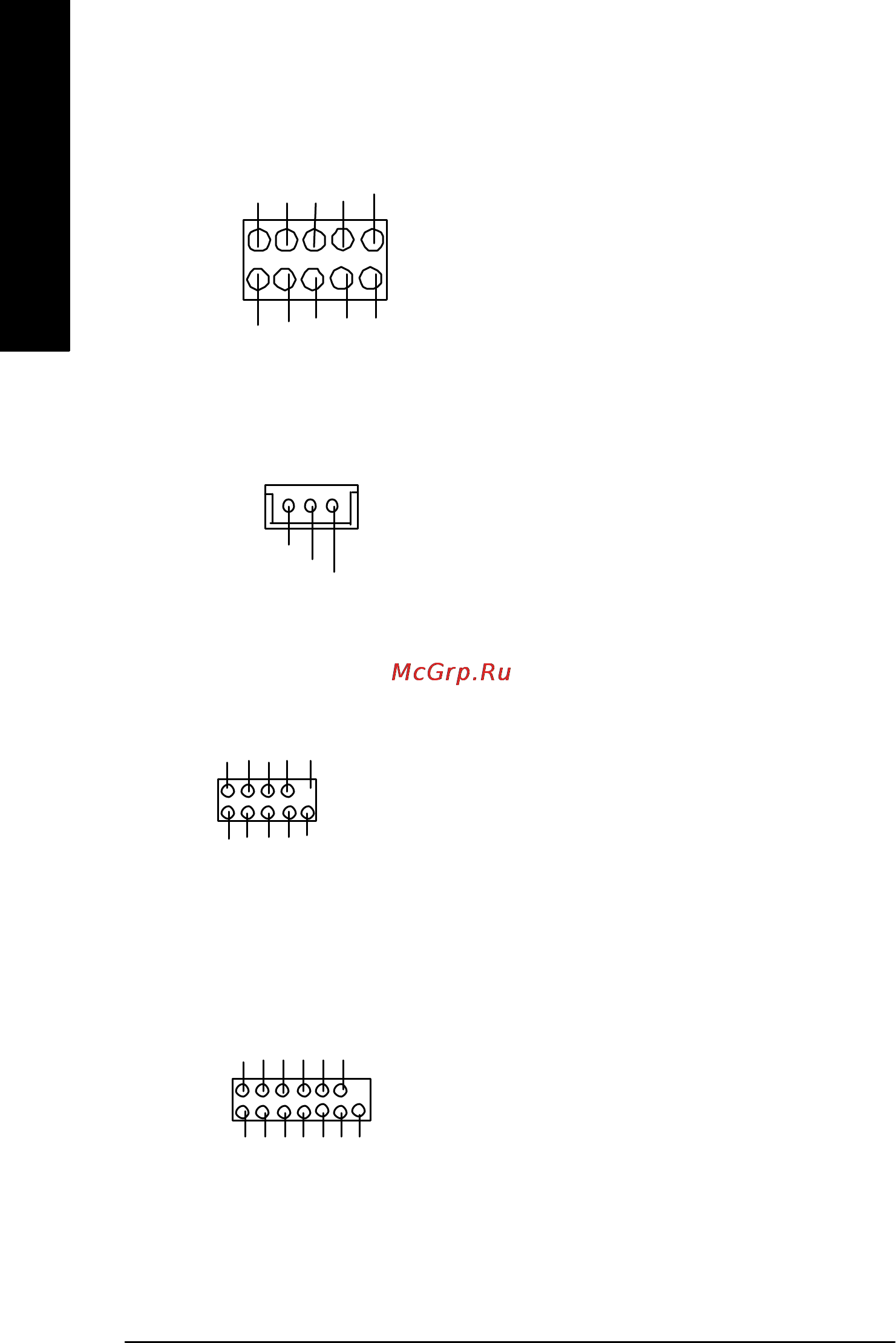

17 ) IR_CIR
Ø Make sure the pin 1 on the IR device is
aling with pin one the connector. To
enable the IR/CIR function on the board,
you are required to purchase an option IR/
CIR module. For detail information please
contact your autherized Giga-Byte
distributor.
To use IR function only, please connect IR
module to Pin1 to Pin5.
GND
1
NC
CIRRX
VCC
GND
NC
VCC
NC
IRRX
IRTX
18 ) WOL (Wake On Lan)
+5V SB
GND
Signal
1
Ø This connector allows the remove servers to
manage the system that installed this
mainboard via your network adapter which
also supports WOL.
19 ) COM B ( White connector)
Ø Be careful with the polarity of the COMB
connector. Check the pin assignment
while you connect the COMB cable.
Please contact your nearest dealer for optional
COMB cable.
NDCDB-
NRTSB-
NSOUTB
GND
NRIB-
NSINB
NDTRB-
NDSRB-
NCTSB-
NC
1
20 ) Modem ( * )
1
VCC
GND
AC SYNC
AC RSTB
VDD33
+12V
VAUX33
NC
NC
“ * ” Only for GA-8GEMT4.
Ø Please contact your nearest dealer for optional
Modem cable.
