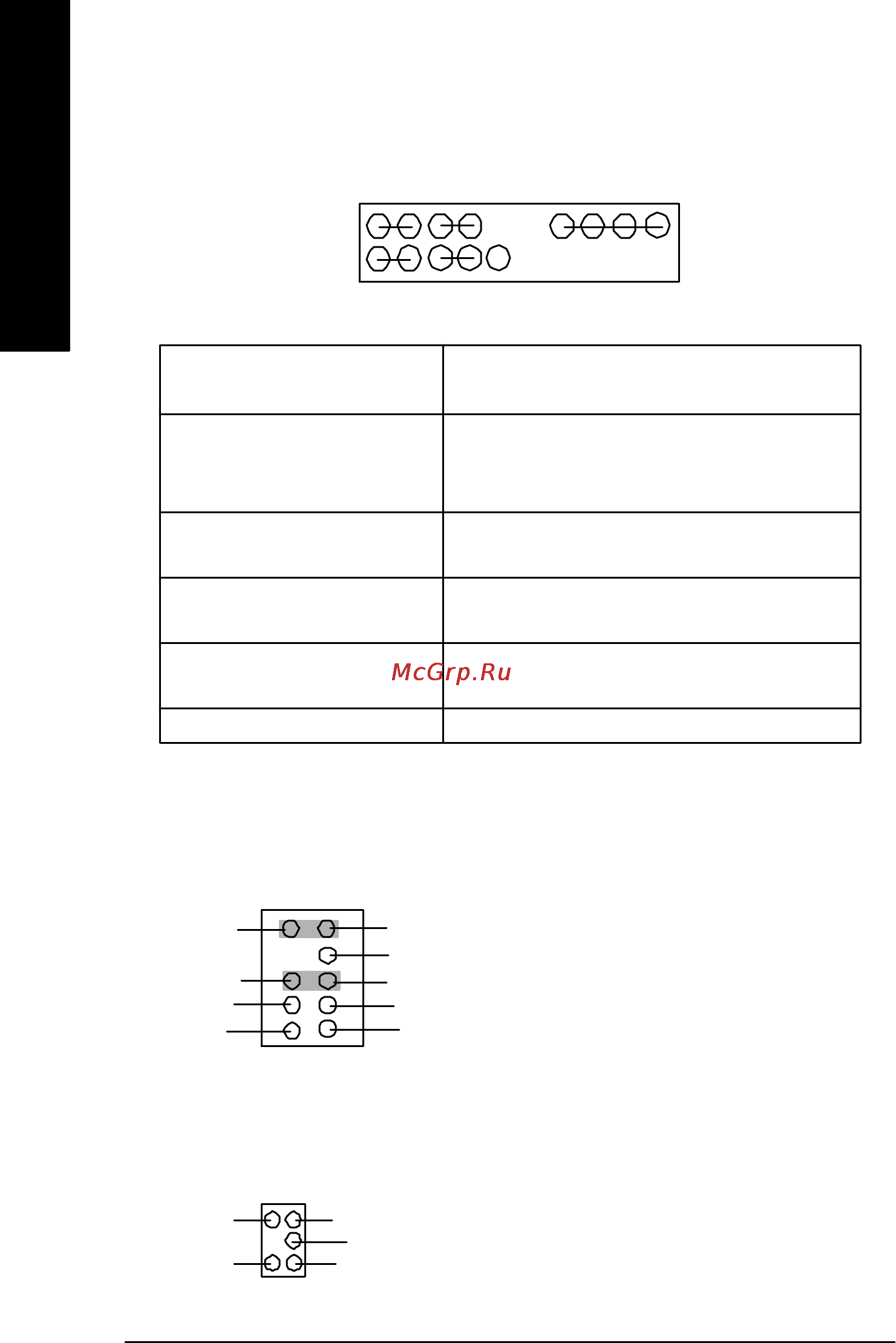

- 18 -GA-8GEMT4 Series Motherboard
English
Ø Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis
front panel to the F_PANEL connector according to the pin assignment above.
9 ) F_PANEL (2x10 pins connector)
SPK+
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
(Blue) Pin 2: LED cathode(-)
SPK (Speaker Connector) Pin 1: VCC(+)
(Amber) Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) Open: Normal Operation
(Green) Close: Reset Hardware System
PW (Soft Power Connector) Open: Normal Operation
(Red) Close: Power On/Off
MSG(Message LED/Power/ Pin 1: LED anode(+)
Sleep LED)(Yellow) Pin 2: LED cathode(-)
NC( Purple) NC
NC
HD+
MSG+
2 20
1 19
PW-
PW+
RES-
SPK-
1
1
RES+
HD-
1
1
MSG-
1
10) F_AUDIO (Front Audio Connector)
ØIf you want to use "Front Audio" connector,
you must remove 5-6, 9-10 Jumper. In order to
utilize the front audio header, yourchassis must
have front audio connector. Also please make
sure the pin assigment on the cable is the same
as the pin assigment on the MB header. To find
out if the chassis you are buying support front
audio connector, please contact your dealer.
Front Audio (L)
1
Reserved
GND
Rear Audio (R)
Rear Audio (L)
Front Audio (R)
2
910
MIC
REFPOWER
11) SUR_CEN
Ø Please contact your nearest dealer for optional
SUR_CEN cable.
1
GND
SUR OUTL
CENTER_OUTBASS_OUT
SUR OUTR
