- 16 -GA-8GEM667K Motherboard
English

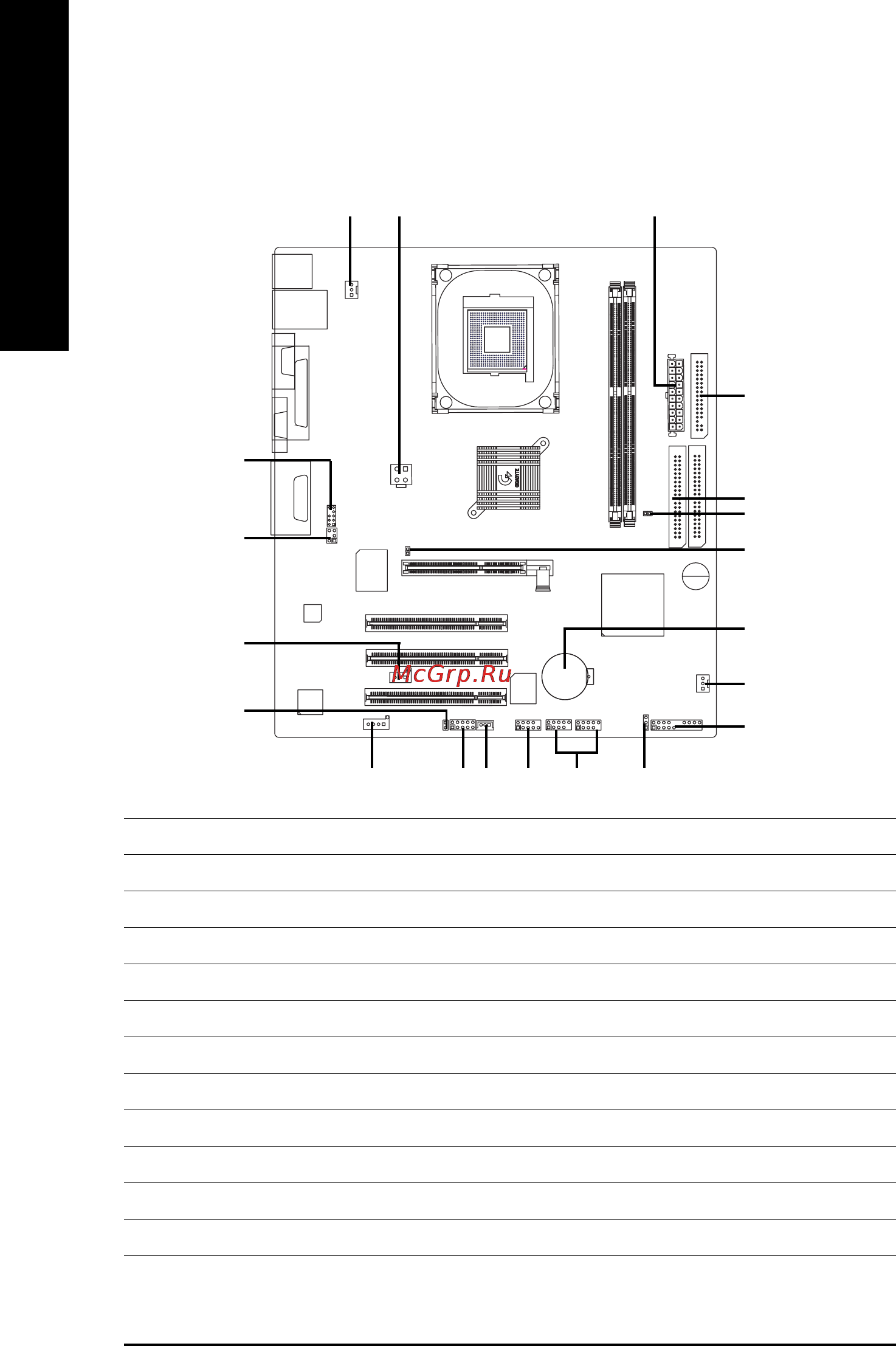

Step 4-2 : Connectors Introduction
1) CPU_FAN 13) SPDIF_O
2) SYS_FAN 14) F_USB1/F_USB2
3) ATX_12V 15) CI
4) ATX 16)IR_CIR
5) IDE1/IDE2 17) WOL
6) FDD 18) COM B
7) PWR_LED 19) BAT
8) 2X_DET 20) CLR_PWD
9) F_PANEL
10) F_AUDIO
11) SUR_CEN
12) CD_IN
5
1 3 4
7
5
20
9
10
11
2
6
12
8
13
1416 17 18
15
19
