Technical Reference
- 63
-
English
Methods and steps:

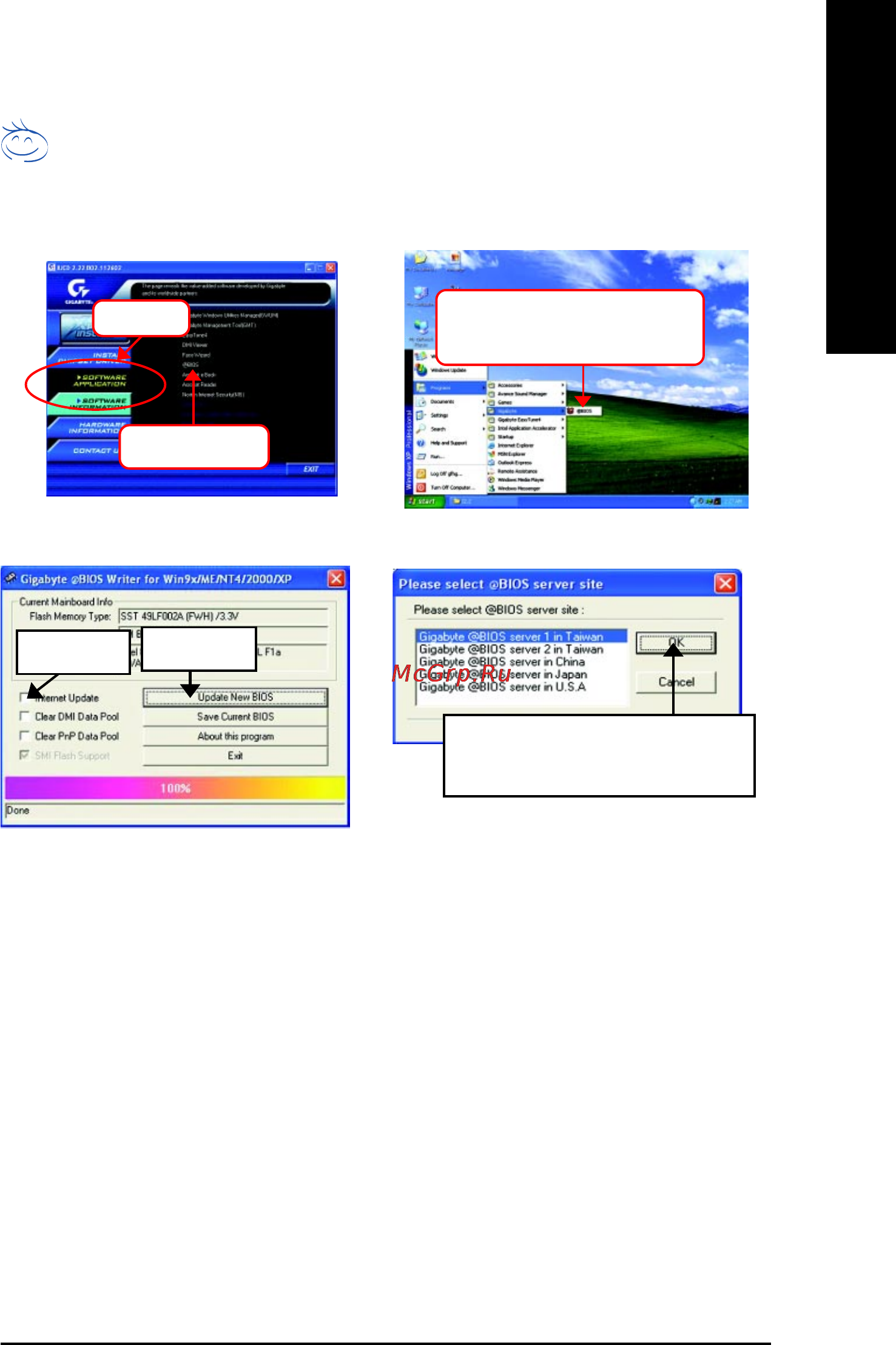

I. Update BIOS through Internet
a. Click "Internet Update" icon
b. Click "Update New BIOS" icon
c. Select @BIOS
TM
sever
d. Select the exact model name on your motherboard
e. System will automatically download and update the BIOS.
Method 3:
If you don’t have DOS boot disk, we recommend that you used Gigabyte @BIOS
TM
program to
flash BIOS.
(2)
(1)
(3)
Click here.
Click "!".
(4)
3. Please select @BIOS sever site,
then Click "OK".
2.Click"Start"-"Programs"-
"GIGABYTE"-"@BIOS"
1.Click "@BIOS .
Press here.
