- 52
-
GA-8GEM667K Motherboard
English

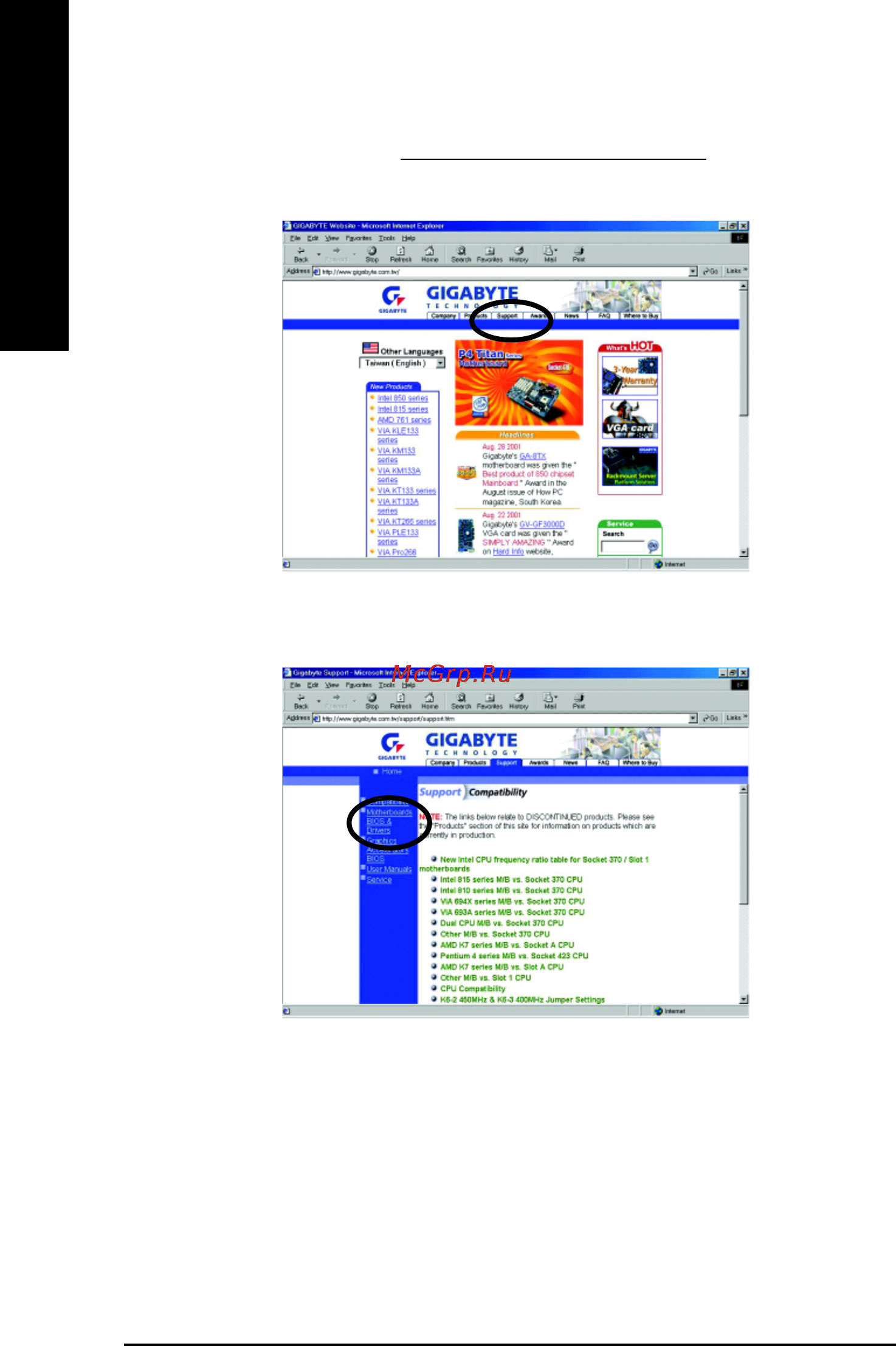

STEP 3: Download BIOS and BIOS utility program.
(1) Please go to Gigabyte website
http://www.gigabyte.com.tw/index.html, and click "Support".
(2) From Support zone, click the "Motherboards BIOS & Drivers".
