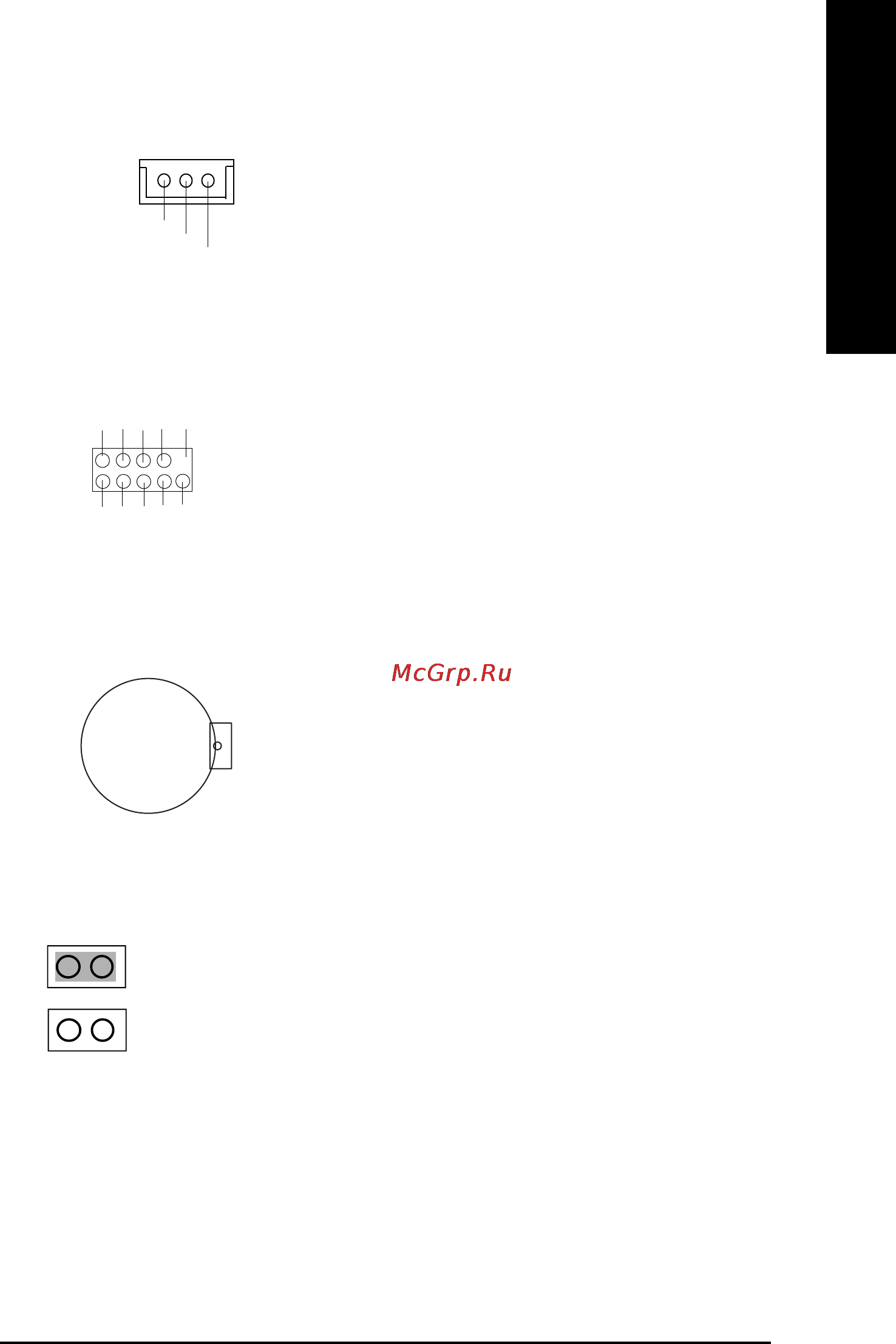

- 21 - Hardware Installation Process
English
17 ) WOL (Wake On Lan)
+5V SB
GND
Signal
1
Ø This connector allows the remove servers to
manage the system that installed this
mainboard via your network adapter which
also supports WOL.
18 ) COM B ( White connector)
Ø Be careful with the polarity of the COMB
connector. Check the pin assignment
while you connect the COMB cable.
Please contact your nearest dealer for optional
COMB cable.
NDCDB-
NRTSB-
NSOUTB
GND
NRIB-
NSINB
NDTRB-
NDSRB-
NCTSB-
NC
1
19 ) BAT (Battery)
CAUTION
v Danger of explosion if battery is incorrectly
replaced.
v Replace only with the same or equivalent
type recommended by the manufacturer.
v Dispose of used batteries according to the
manufacturer’s instructions.
+
20 ) CLR_PWD
1
Open: Clear Password
1
Close: Normal
Ø When Jumper set to "open", the password that
set will be cleared. On the contrary when
Jumper set to "close", the current status
remains.
M PS, the function offers a solution for users who
forget the password.
