Chapter 2 Hardware

Multy WiFi System User’s Guide

2.2 Hardware Installation

This section describes how the hardware device can be installed.

2.2.1 WSQ50/WSQ20 Installation

If your Multy Device comes with mounting holes at the bottom, you can use mounting brackets to

attach it to a wall or ceiling. If not, you have to place it on a desk, table, shelf, etc.

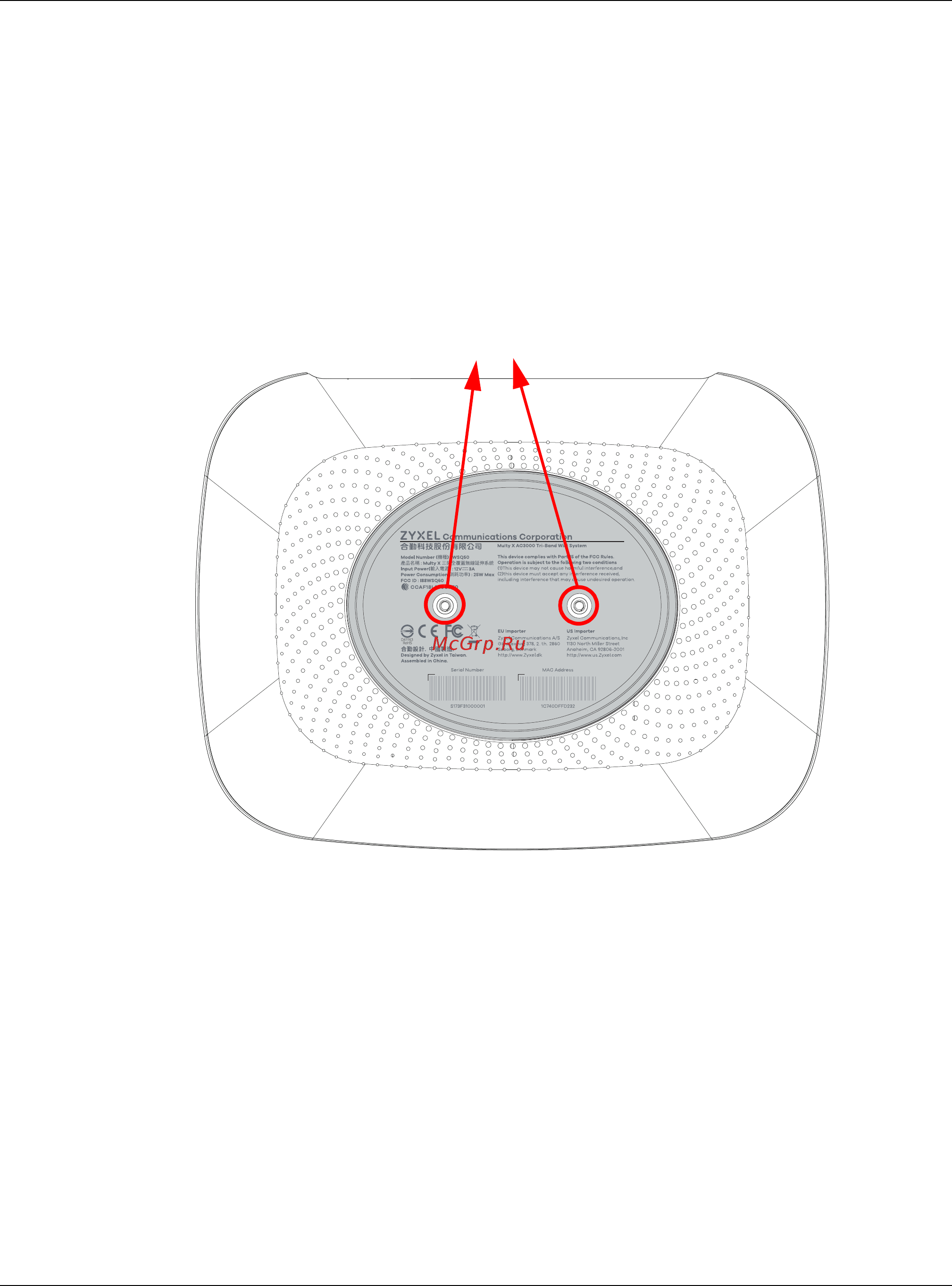

Figure 4 WSQ50 Mounting Holes

Mounting Holes
