Chapter 2 Hardware
Multy WiFi System User’s Guide
12

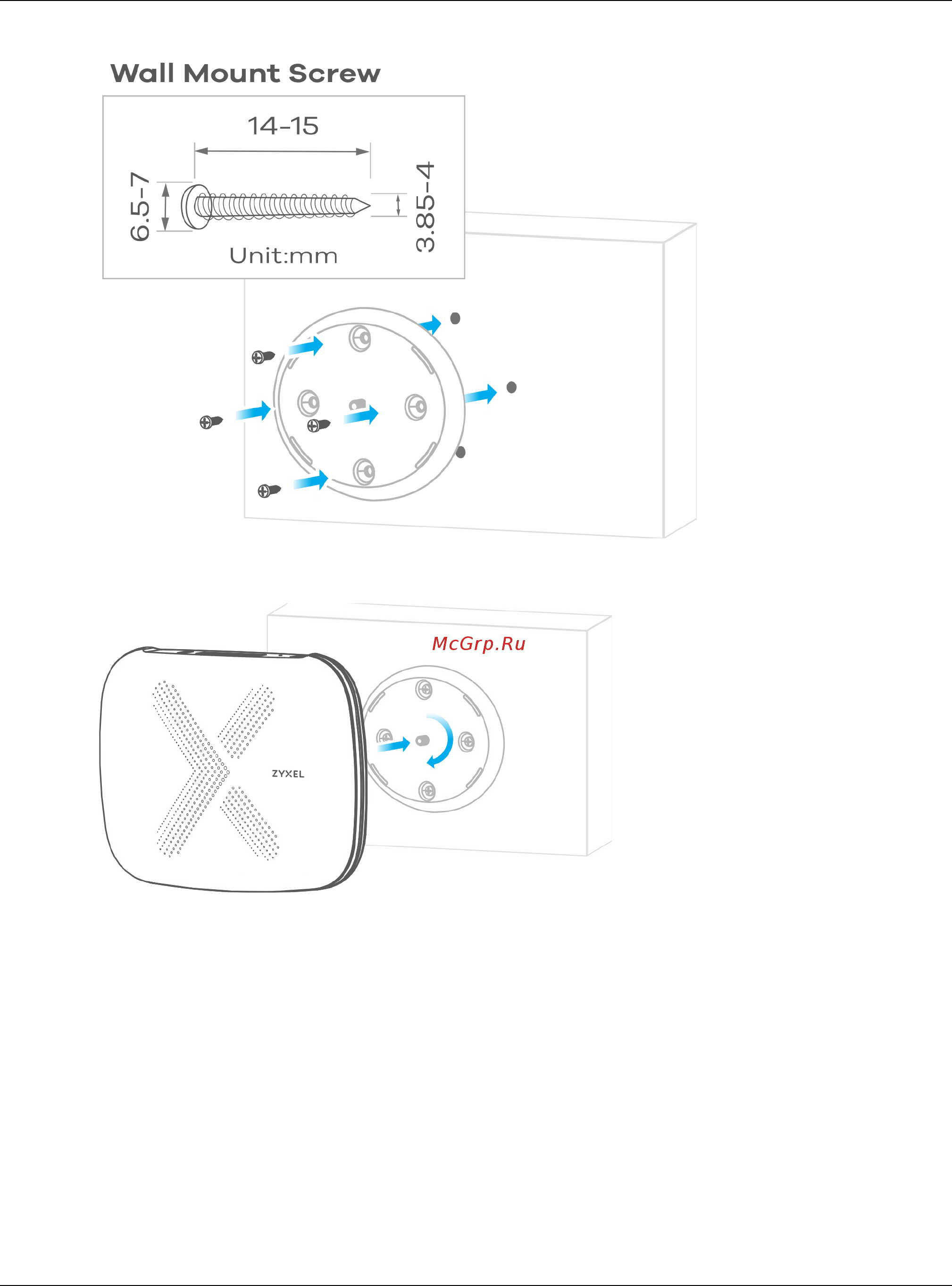

2 Screw the mounting base into the wall/ceiling.
3 Line up the Multy’s base hole with the mounting base screw. Gently turn the Multy clockwise until it’s
secured to the mounting base.
2.2.2 WSR30 Installation
There are two ways to set up your WSR30 Multy Device:
• You can attach the leather strap to the hole at the top of your Multy Device to hang it to a wall or
ceiling, as shown in Figure 6 on page 13.
• You can also use the back port cover as a stand by attaching it to the bottom of the Multy Device
(shown blue in Figure 7 on page 13).
