Chapter 2 Hardware
Multy WiFi System User’s Guide
15
WSQ60/WSQ50/WSQ20:
1 Make sure the LED light on the top panel is not blinking white.
2 Press the reset button for at least five seconds or until the LED starts to blink red.
WSR30:
Press the reset button for at least five seconds or until the LED starts to blink amber.
2.4 LED Light
Look at the LED on the top (WSQ60/WSQ50/WSQ20) or front (WSR30) panel to determine the status of
the Multy Device.

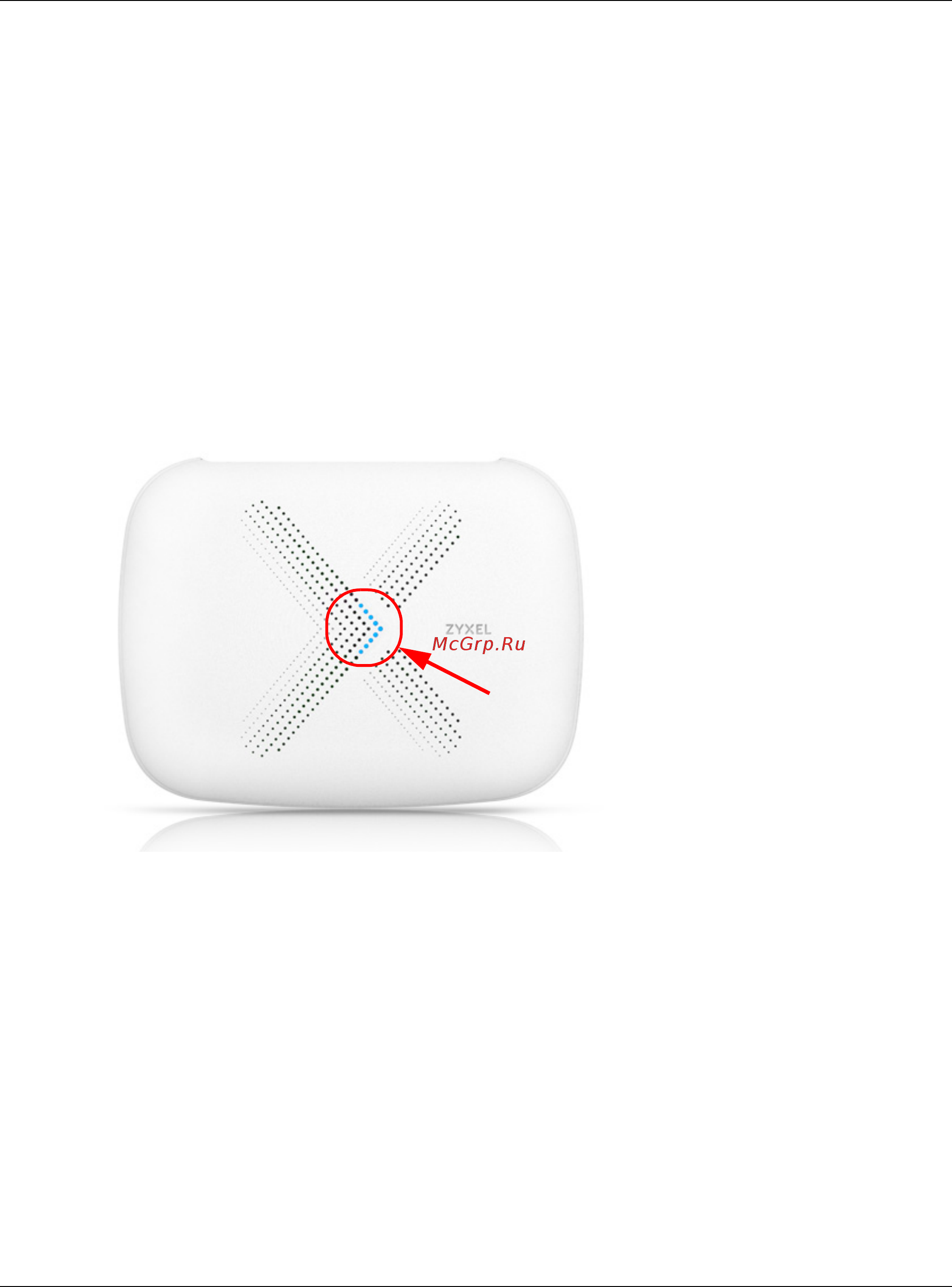

Figure 11 WSQ50/WSQ60 LED
