Chapter 2 Hardware
Multy WiFi System User’s Guide
16

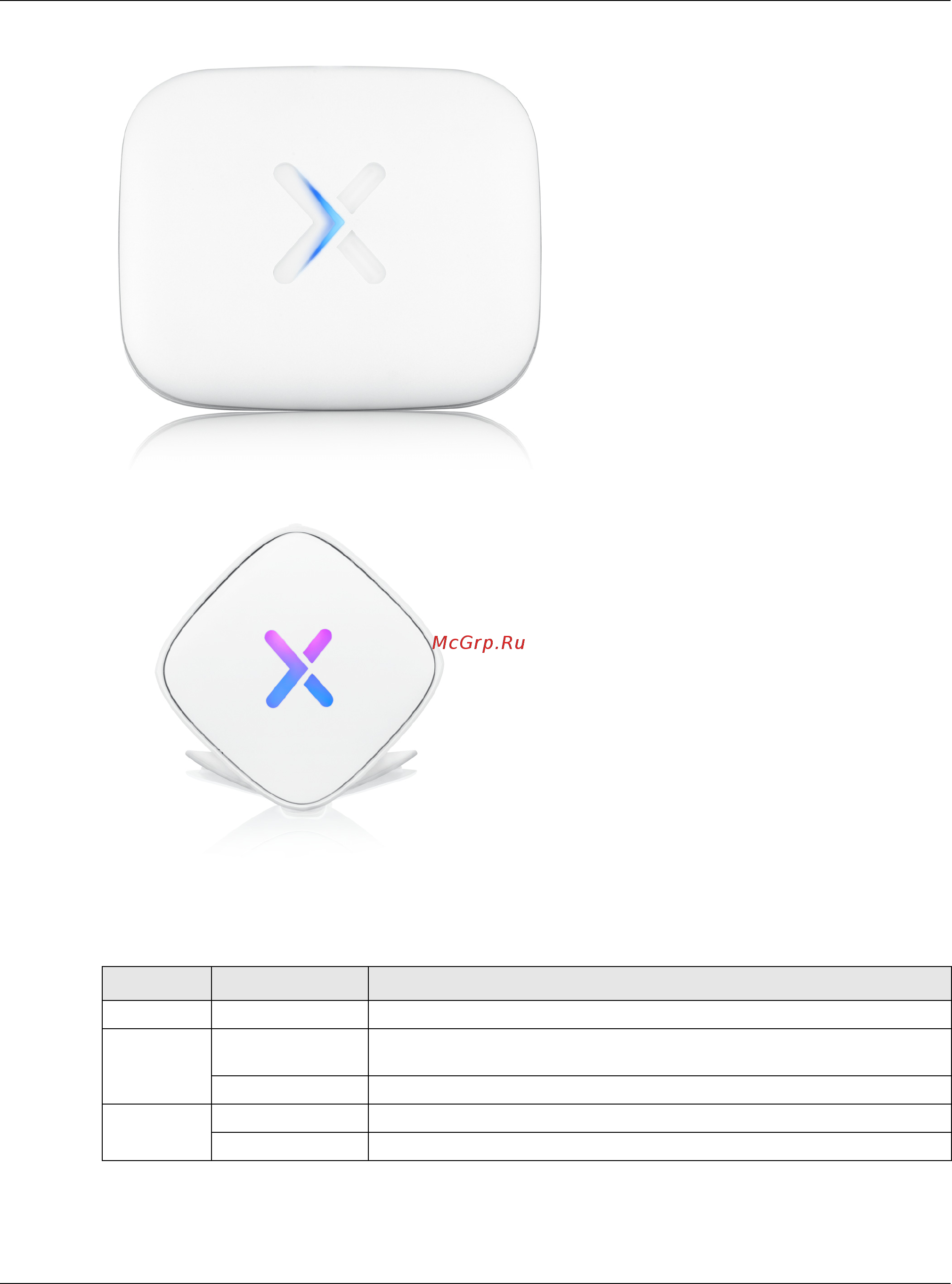

Figure 12 WSQ20 LED
Figure 13 WSR30 LED
The following are the LED descriptions for your Multy Device.
Table 3 WSQ60/WSQ50/WSQ20 LED Descriptions
COLOR STATUS DESCRIPTION
Off The Multy Device is not receiving power.
White Blinking The Multy Device is booting up, undergoing firmware upgrade, or being
configured.
On The Multy Device is on and connected to the Internet.
Blue Blinking Bluetooth is enabled on the Multy Device.
On The Multy Device in extender mode is connecting to the primary Multy.
