Fluke 123/124

Users Manual

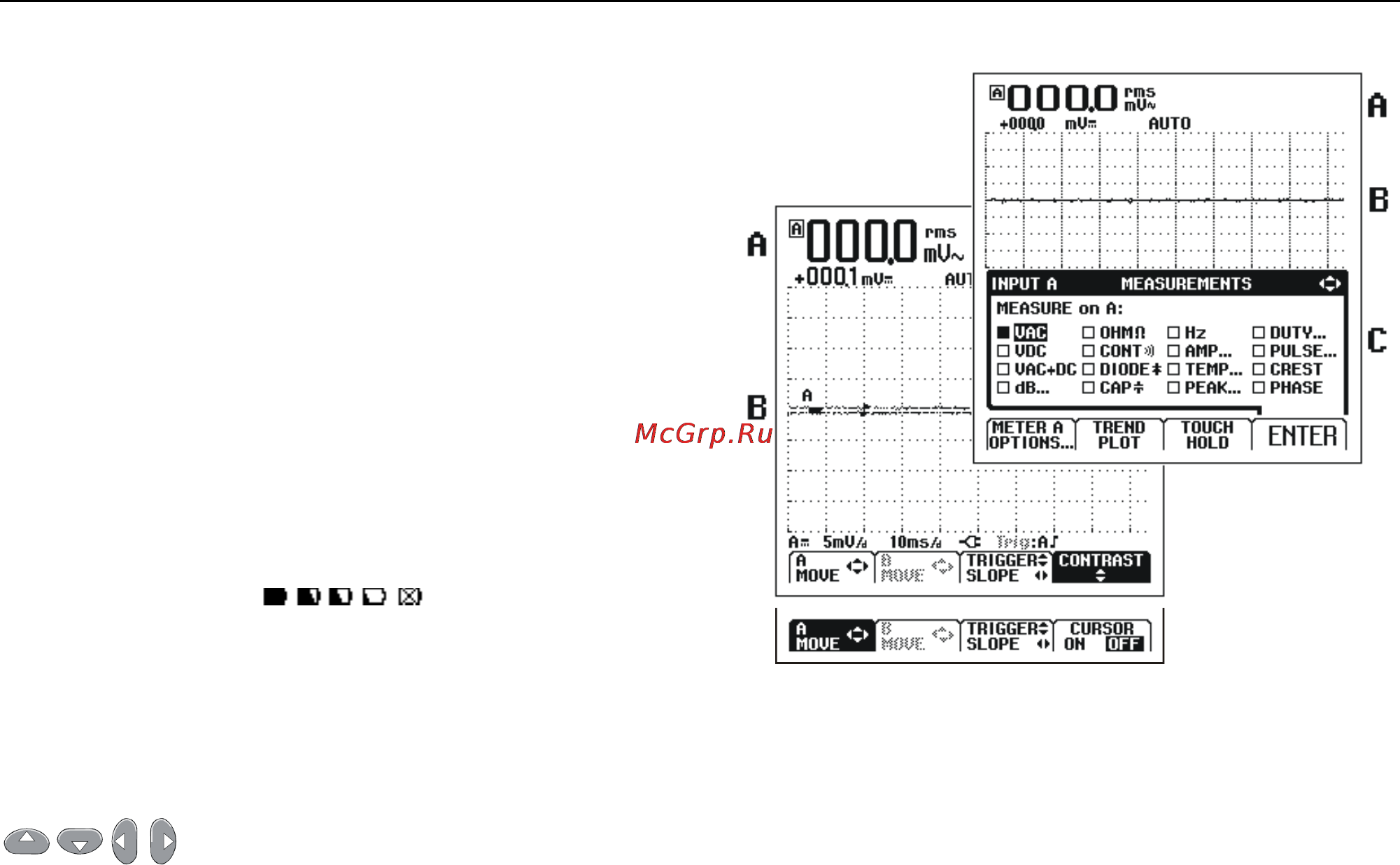

Reading the Screen

The screen is divided into three areas: Reading area,

Waveform area, and Menu area. Refer to Figure 1-3

during the following.

Reading area

(A): Displays the numeric readings.

Because only input A is on, you will see the input A

readings only.

Waveform area

(B): Displays the input A waveform. The

bottom line displays the ranges/div and the power

indicator (line or battery). Because only input A is on, you

will see the input A waveform only.

Note

When battery powered, the battery indicator

informs you about the condition of the battery

from full to empty:

Menu area (C): Displays the menu that provides choices

available through the blue function keys.

When you change a setup, a part of the screen is used to

display the choices. The area displays one or more

menus with choices accessed with the arrow keys:

Fluke 123

Fluke 124

Figure 1-3. The Screen Area's
