Using The Test Tool

Making Cursor Measurements

Fluke 124 has cursors. Cursors allow you to make precise

digital measurements on waveforms. This can be done on

live waveforms and on saved waveforms.

Using Horizontal Cursors on a Waveform

To use the cursors for a voltage measurement, do the

following:



From Scope mode, display the

Cursor Key functions.

 Press to highlight . Observe

that two horizontal cursor lines

are displayed.

 Highlight the upper cursor.

 Move the upper cursor to the

desired position on the screen.

 Highlight the lower cursor.

⑥ Move the lower cursor to the

desired position on the screen.

Note

Even when the key labels are not displayed at

the bottom of the screen, you can still use the

arrow keys.

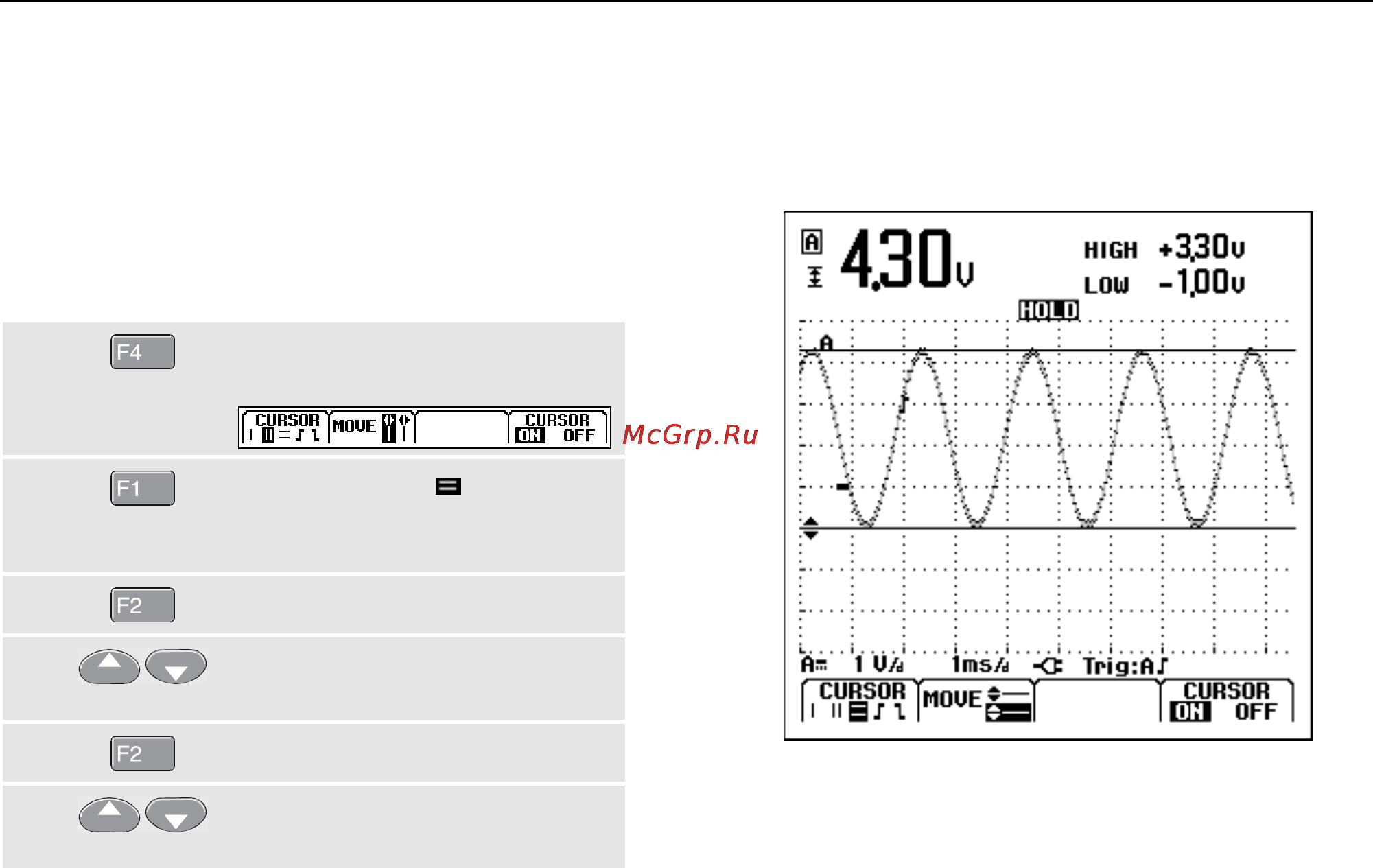

Figure 1-19. Voltage Measurement with Cursors
