Fluke 123/124
Users Manual
58

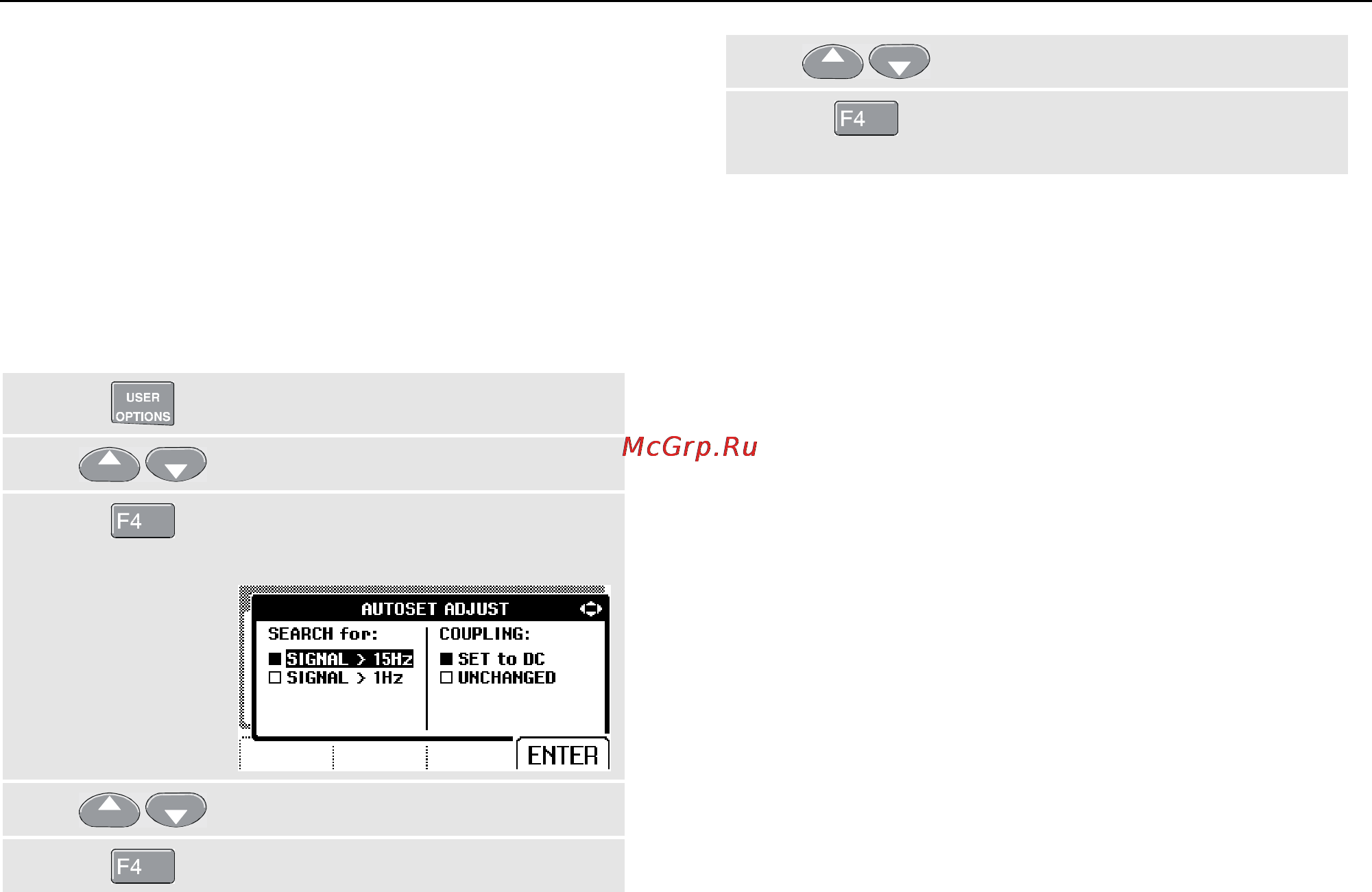

Changing the Auto Set Options
Normally, the Auto Set function captures waveforms from
15 Hz.
To configure Auto Set for waveforms from 1 Hz with
unchanged input coupling, do the following:
Note
Setting the Auto Set adjust to 1 Hz will slow
down the Auto Set response.
Open the User Options menu.
Highlight AUTOSET ADJUST...
Open the AUTOSET ADJUST
submenu.
Highlight SIGNALS > 1 Hz.
Select COUPLING.
Highlight UNCHANGED.
Accept the new Auto Set
configuration.
