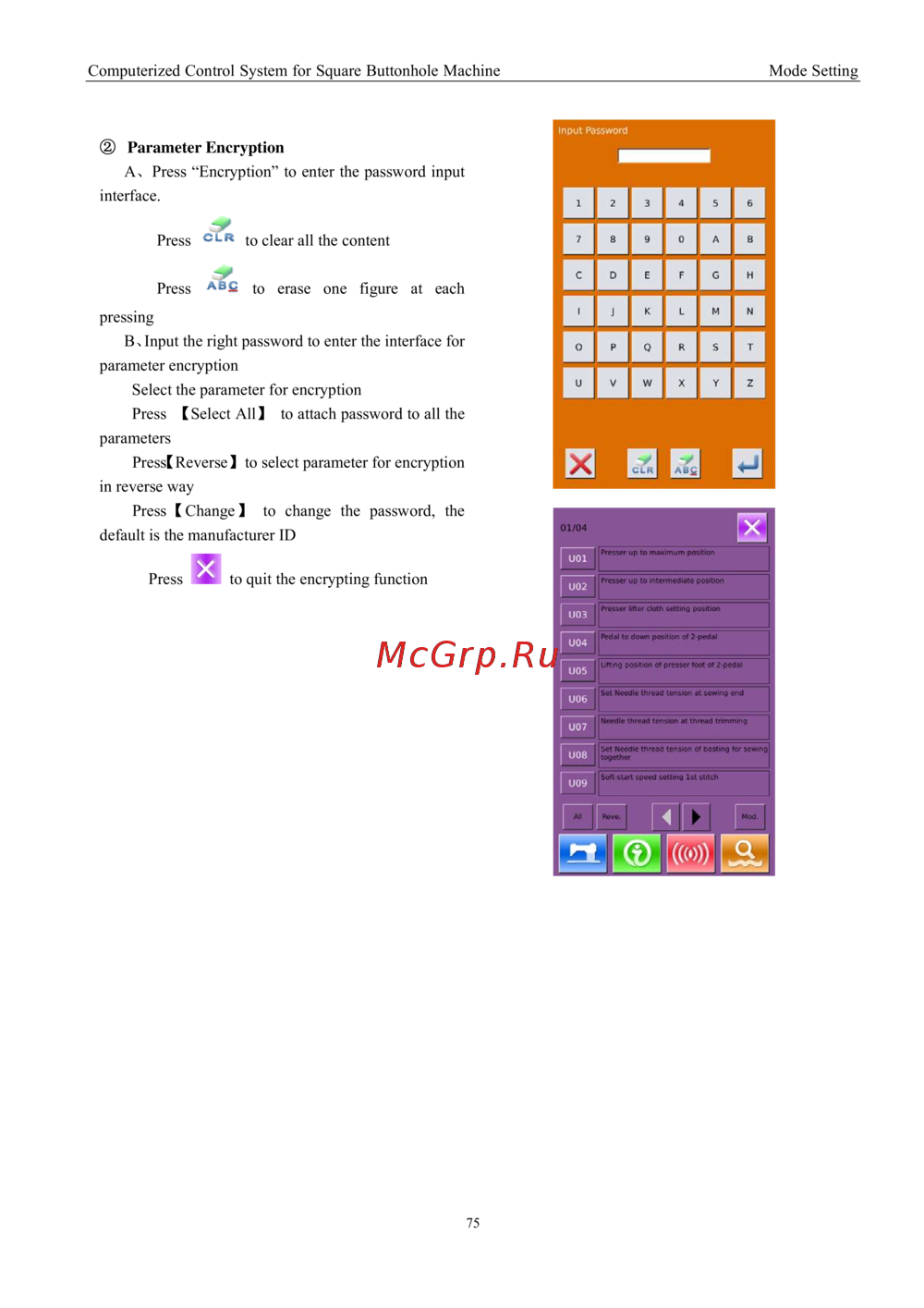

Computerized Control System for Square Buttonhole Machine Mode Setting

② Parameter Encryption

A、Press “Encryption” to enter the password input

interface.

Press

to clear all the content

Press to erase one figure at each

pressing

B、Input the right password to enter the interface for

parameter encryption

Select the parameter for encryption

Press 【Select All】 to attach password to all the

parameters

Press【Reverse】 to select parameter for encryption

in reverse way

Press【Change】 to change the password, the

default is the manufacturer ID

Press

to quit the encrypting function
