21
GB

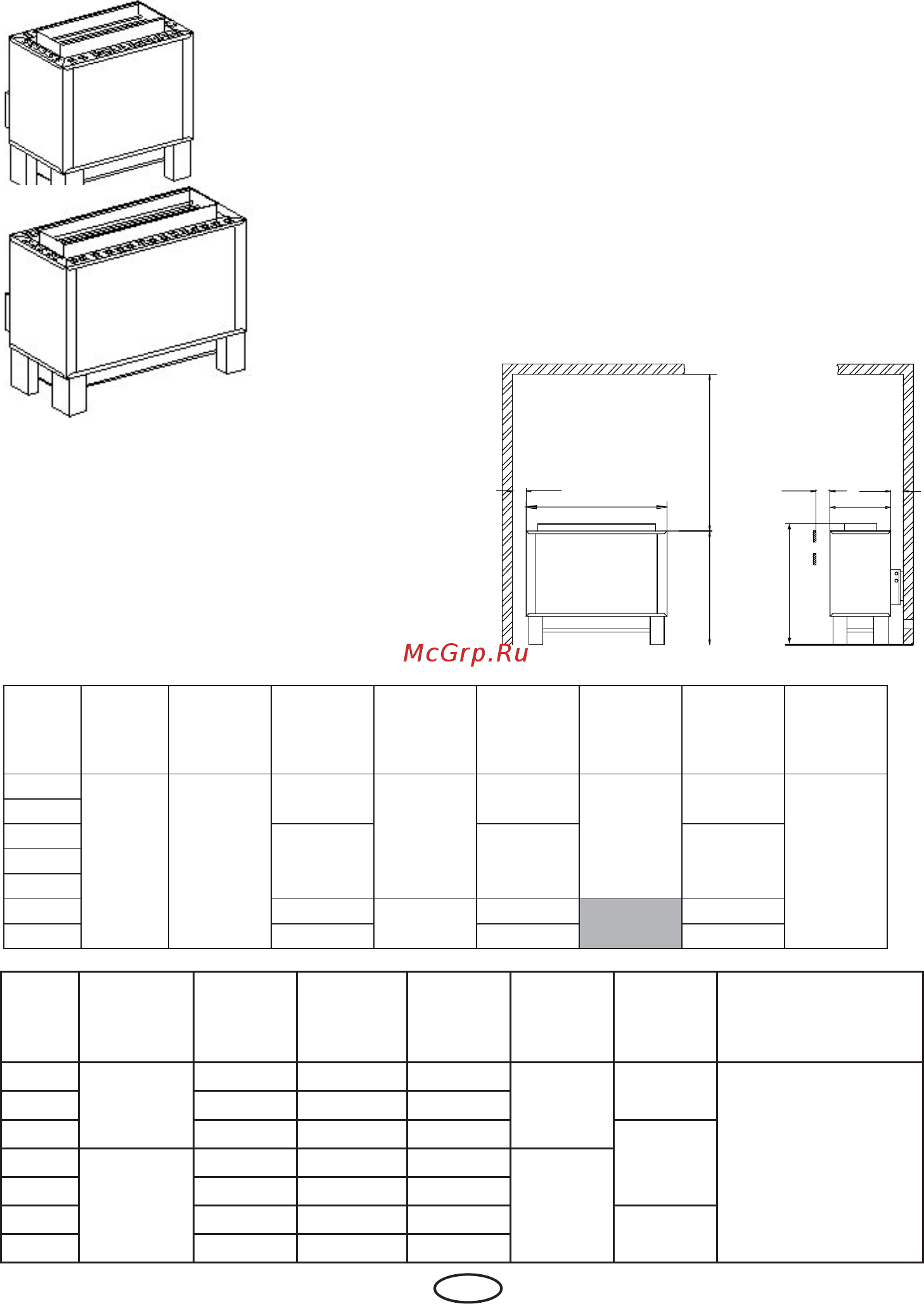

Installation
The sauna heating unit is designed for ope-
ration with an input voltage of 400 V AC 3N
through the sauna control unit.
G 15 = 15 kW
G 18 = 18 kW
G 21 = 21 kW
width=75 cm
G 24 = 24 kW
G 27 = 27 kW
G 30 = 30 kW
G 36 = 36 kW
width=100 cm
Minimum clearances
The sauna cabin must have a minimum
inside height of 2.10 m.
When installing the sauna heater, please
ensure that the vertical height between the
top surface of the sauna heater and the
roof of the sauna is at least 130 cm, and
that the horizontal separation between the
heater and the cabin wall or other fl ammable
materials is at least 10 cm.
The distance between the heater guard
and/or bench and other fl ammable mate-
rials must be at least 10 cm. The height of
the heater guard must be the same as the
height of the front of the stove.
100 cm
(75 cm)
minimum
130 cm
80 cm
10 cm
10 cm
43 cm
10 cm
The sauna heater, if used in commercial/
public facilities and equipped with remote
control*, may be used only in combination
with the appropriate cover protection system
or S-Guard system.
*Remote control – means settings, switching,
control and adjustment of the sauna control
unit by means of commands transmitted from a
remote location beyond sight distance using tel-
ecommunication, wire- or wireless signal trans-
mission systems, network and similar systems.
Capacity
acc. DIN
Electrical.
Connection
Fuse control
unit in A
Fuse LSG
in A
Connecting
cable main
- control unit
in mm²
Connecting
cable main
- LSG in mm²
Connecting
cable control
unit - heater
in mm²
Connecting
cable LSG
- heater in
mm²
Connecting
cable control
unit - LSG in
mm²
15 kW
3N AC
50 Hz
400 V
3 x 16
3 x 16
5 x 2,5
5 x 2,5
5 x 1,5
5 x 1,5
4 x 1,5
18 kW
21 kW
3 x 35 5 x 6 5 x 624 KW
27 kW
30 kW 3 x 50
3 x 1,5
5 x 10 2 St. 5 x 6
36 kW 3 x 63 5 x 16 2 St. 5 x 6
All cross sections of a line are minimum diameters in mm² (Copper line)
ca. 95 cm
Capacity acc.
DIN
heater dimensions
H/W/D cm
For cabin size
Minimum dimensions of
air intake and exhaust
vents
Weight without stones
without package
Stone fi lling
Power switch gear
(LSG) needed
For operation with control units
15 kW
95 x 75 x 53
18 - 25 m³ 50 x 6 cm 48 kg
30 kg
ECON 45L09
EMOTEC L09
ECON 45A1
ECON 45A2
ECON 45H2
EMOTEC DC 9000
EMOTEC DC 9000 DB/DL/DLF
EMOTEC HCS 9003
EMOTEC HCS 9003 DB/DL/DLF
EmoTouch II PB/AF/GF
18 kW 24 - 30 m³ 50 x 6 cm 49 kg
21 kW 24 - 34 m³ 50 x 8 cm 50 kg
LSG 1824 kW
95 x 100 x 53
35 - 40 m³ 50 x 8 cm 61,5 kg
45 kg
27 kW 40 - 50 m³ 50 x 9 cm 62,5 kg
30 kW 50 - 65 m³ 50 x 10 cm 63,5 kg
LSG 36
36 kW 65 - 75 m³ 50 x 10 cm 65,5 kg
