GB - 16
MAINTENANCE SCHEDULE
The chart below shows the recommended
maintenance schedule that should be
performed on a regular basis. More frequent
service may be required due to working
conditions (heavy loads, high ambient
temperatures, dusty conditions, or airborne
debris).
* After first five hours of operation.
** After first two hours of operation.
*** Oil chains and u-joint friction areas after
first 5 hours of operation and every 25 hours
thereafter.
CHECK FASTENERS
Make sure all hardware is tightened properly.
CHECK CLUTCH OPERATION
Brush must stop quickly when attachment
clutch lever is released.
Wheels must stop quickly when traction drive
clutch lever is released.
If clutches do not engage or disengage
properly, adjust or repair before operation
(see Service and Adjustments).
OS7242
-A--A-

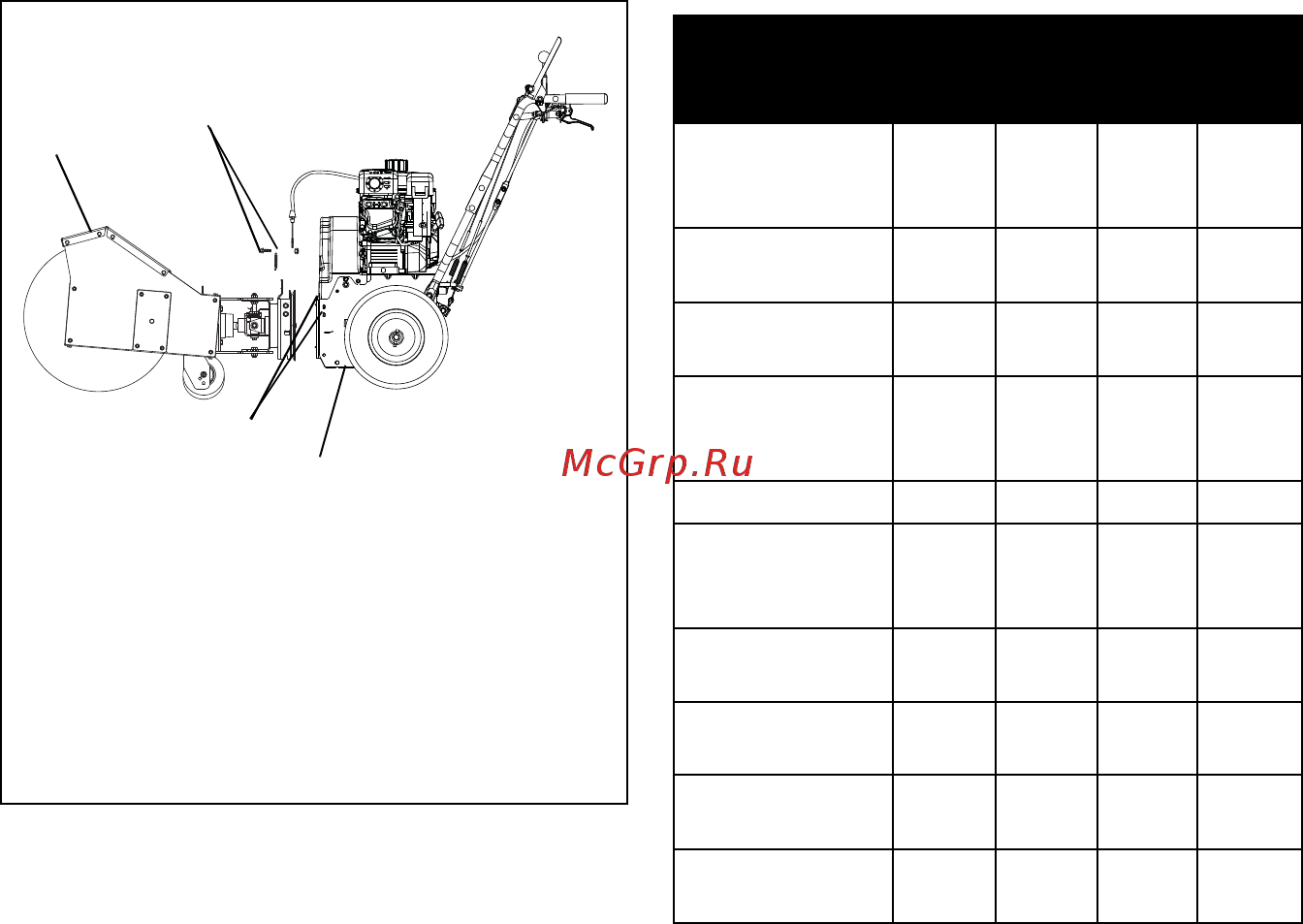

Figure 10
1. Brush Assembly
2. Cable Attaching Hardware
3. Assembly Bolt Holes
4. Bottom Cover
1
2
3
4
MAINTENANCE
SCHEDULE
Service
Performed
Each
Use
Every
5 hrs.
Every
25
hrs.
Yearly
Check
Fasteners
•
Check Clutch
Operation
•
Check Clutch
Spring
Adjustments
*
•
Clean Engine •
Clean Recoil
Guard Foam
Cover
•
Check Engine
Oil
•
Change
Engine Oil
**
•
Check Tire
Pressure
•
General
Lubrication
***
••
