Ariens POWER BRUSH 28 [24/30] Traction drive clutch adjustment
![Ariens POWER BRUSH 28 [24/30] Traction drive clutch adjustment](/views2/1509909/page24/bg18.png)
GB - 24
Check Belt Finger Clearance
(Figure 25)
1. With clutch lever engaged, the belt
finger located opposite the belt idler
must be less than 1/8 in. (3.18 mm) from
belt, but not touching the belt.
To adjust belt finger, loosen the bolts and
move the finger to the proper position.
Tighten the bolts and recheck the belt
finger clearance.
2. Replace the belt cover.
TRACTION DRIVE CLUTCH
ADJUSTMENT
If drive slips, adjust traction clutch to
compensate for friction disc wear.
To test traction clutch (Figure 26):
1. Put unit in first forward speed.
2. Without engine running, push unit
forward while slowly moving the traction
drive clutch lever toward the handlebar.
3. Measure distance between lever and
handlebar when the wheels begin to
brake. If distance is not 7 – 7-1/2 in.
(17.8 – 19.0 cm), adjust the traction
clutch.
To adjust traction clutch (Figure 27):
1. With the traction drive clutch lever
disengaged, loosen the jam nut on the
cable adjuster.
Turn adjustment barrel up the cable to
decrease the distance between clutch
lever and handlebar.
Turn the adjustment barrel down the
cable to increase the distance between
clutch lever and handlebar.
2. Check traction clutch lever distance and
repeat adjustment steps if necessary.
3. Tighten jam nut on traction cable
adjustment barrel.
4. With the clutch disengaged, check that
there is more than 1/32 in. (0.8 mm)
clearance between friction disc and
drive plate assembly. See Figure 28 on
page 25.

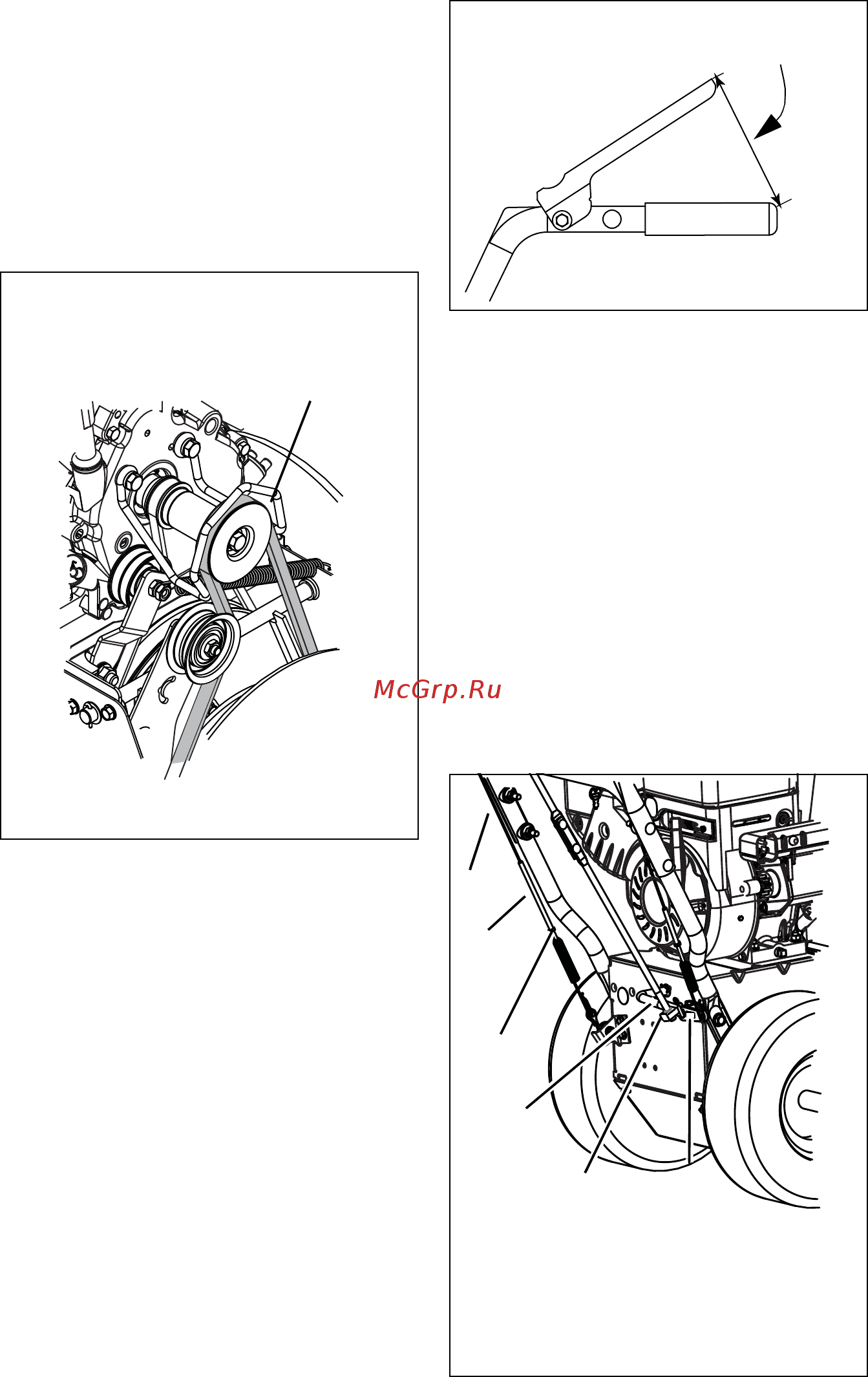

Figure 25
OS8067
Check belt finger clearance here. With the
attachment clutch engaged, there should
be less than 1/8 in. (3.18 mm) clearance
between the belt and the belt finger. The
belt finger should not touch the belt.
Traction Clutch Lever
OS2490
Figure 26
7 – 7-1/2 in.
(17.8 – 19.0 cm)
Figure 27
1. Traction Drive
Clutch Cable
2. Adjustment
Barrel
3. Jam Nut
4. Adjustment
Pivot Pin
5. Speed
Selector Arm
6. Attachment
Clutch Arm
OS8175
1
2
3
4
5
6
