4180, 4181 Precision Infrared Calibrator
Parts and Controls
14

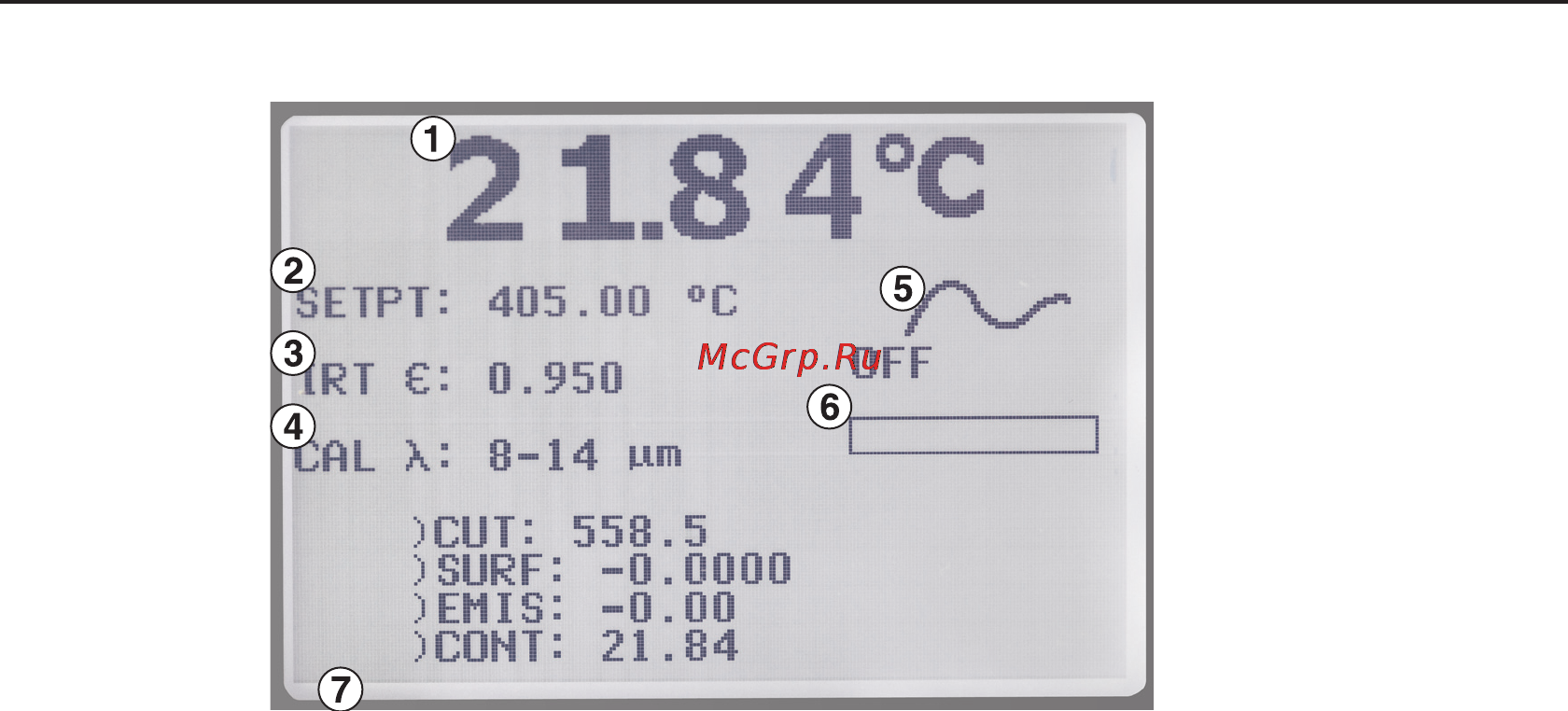

Figure 2 Main screen
Back Panel3.2.3
The following are found on the back panel of the IR Calibrator (see Figure 3 on op-
posite page).
Fan (1)
The fan is located high in the center of the back of the instrument. Do not obstruct the
airow of the fan. Leave at least 6 inches of air ow around the instrument.
Power Entry Module (2)
The power supply cord attaches to the power entry module. Plug the cord into an AC
mains supply appropriate for the voltage displayed on the power entry module and as
specied in Section 2.1 Specications on page 9.
Power Cord
The power entry module contains the attachment for the power supply cord to the right
hand side back panel. Plug the cord into an AC mains supply appropriate for the volt-
age range as specied in the specications tables.
Power Switch
The power switch is located on the power entry module of the instrument.
Fuses
The 418X fuses are located inside the power entry module of the instrument (Figure 3
on opposite page).
