Connecting Your Printer and Installing Drivers | 1-17

4. Click

Add Port

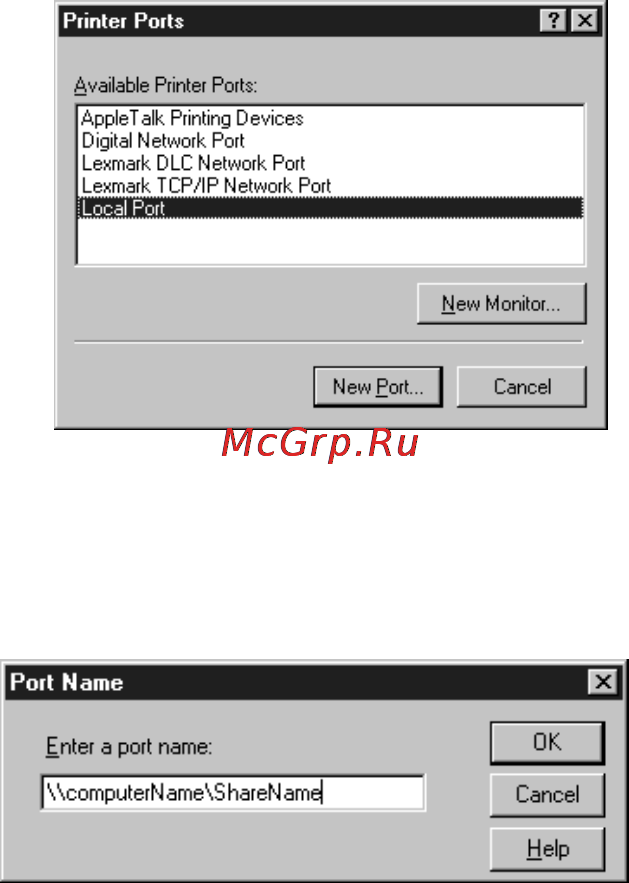

. You see the Printer Ports dialog box:

5. Select

Local Port

, then click

New Port

. You see the Port Name dialog

box:

6. In the text box, type the following information:

\\name of computer that is connected to the printer\name of the shared

printer

Then click

OK.

7. Click

to return to the Ports list.

8. Make sure the new port is added and the check box is selected. Then

click
