Epson Stylus Pro 7000 [32/147] Accessing the printer through a network

1-16

1-16 | Connecting Your Printer and Installing Drivers

3. Click

Shared

and enter the Share Name. Do not choose any drivers

from the Alternate Drivers list. Then click

OK.

Accessing the printer through a network

To access the printer from another computer on your network, follow these

steps.

1. Install the printer driver on the client computer from the software

CD-ROM.

2. Open the Printer folder from the Control Panel, right-click your

printer’s icon, then click

Properties

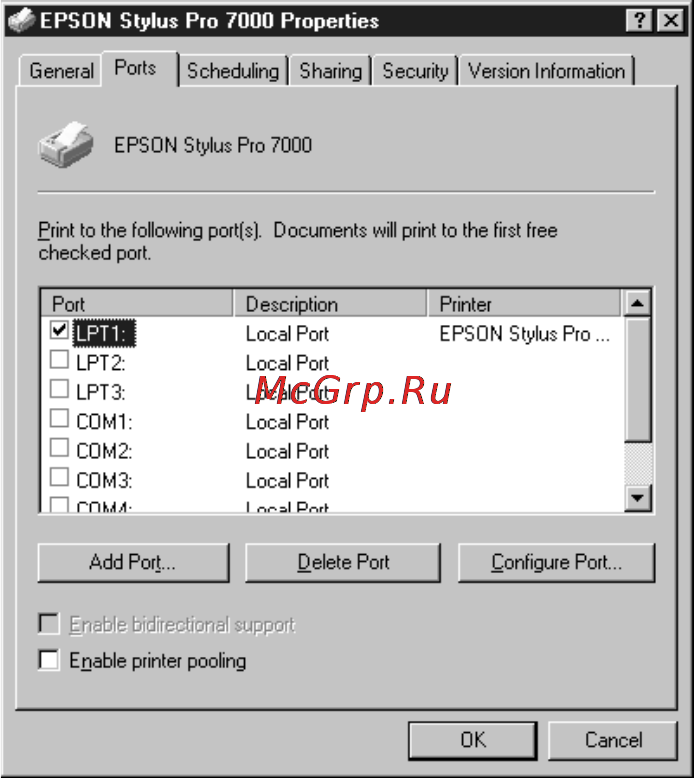

3. Click the

Ports

tab to display the following window:
