Epson Stylus Pro 7000 [90/147] Checking printer status from windows

5-10

5-10 | Monitoring the Printer

Checking Printer Status from Windows

The Windows Status Monitor 3 utility lets you check individual levels of ink

in your printer, warns you when errors occur, and allows you to control the

way printing is monitored. Follow these steps to open the utility:

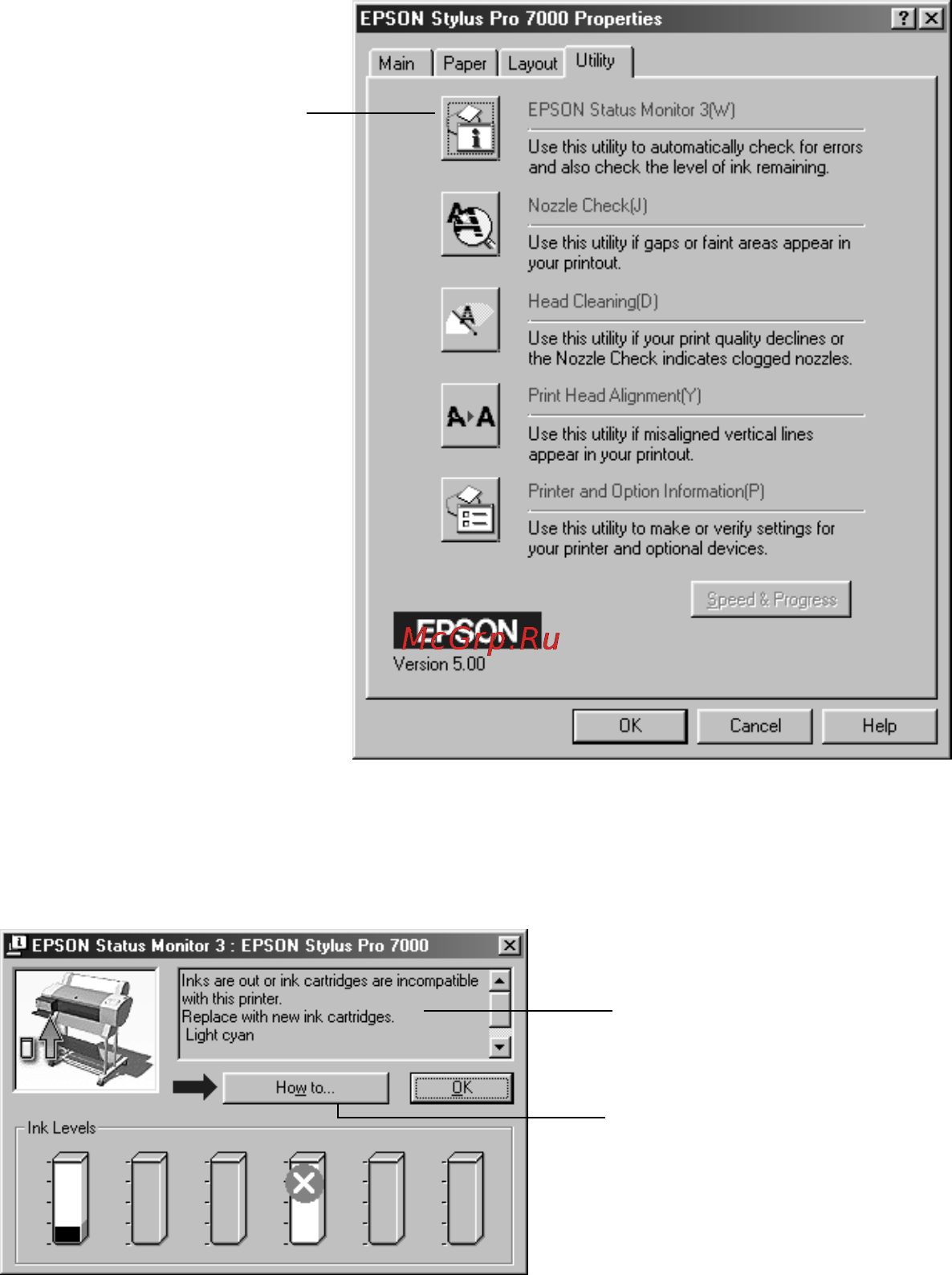

1. Access the Main Printer Properties dialog box.

2. Click the

Utility

tab. You see the Utility menu:

3. Click the

EPSON Status Monitor 3

button. The following window

appears. (It also opens automatically when an error occurs.)

Click to run

Status Monitor 3

Printer status messages

appear here.

If an ink cartridge runs low or

out, click here to display

replacement instructions.
