Epson Stylus Pro 7000 [43/147] If the roll paper cover is closed open it

2-9

Handling Paper | 2-9

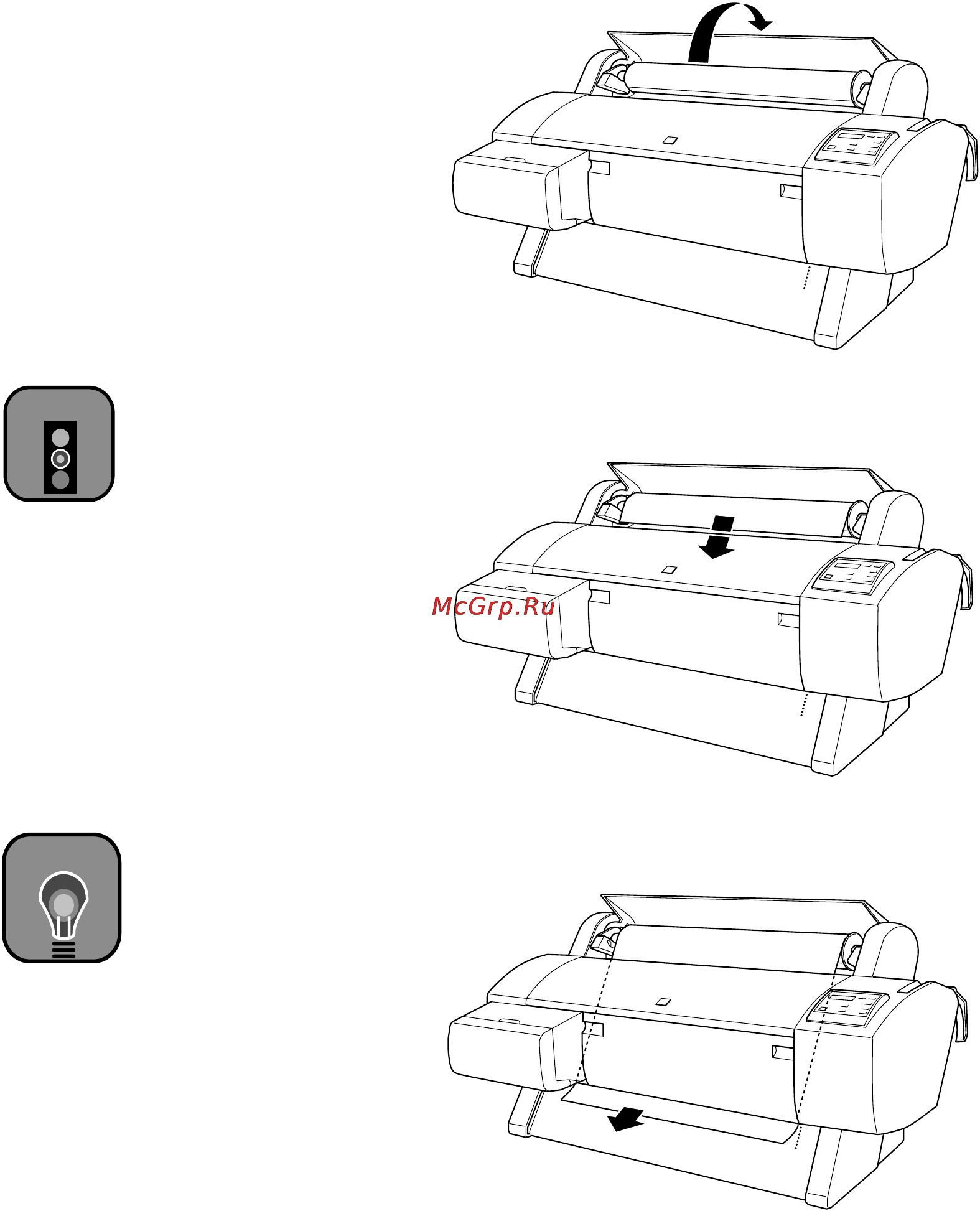

3. If the roll paper cover is closed, open it.

4. Feed the paper into the paper slot.

5. Pull the paper down so it extends all the way through the slot.

Caution

Avoid touching the

printable surface of the

paper with bare hands.

Fingerprints may affect

print quality.

TIP

If the bottom edge of the

paper doesn’t come out,

open the lower cover and

pull the paper through.
