Инструкция по эксплуатации Страница: 54

Epson Stylus Pro 7000 [54/147] If the parts shown below become loose tighten them by hand

2-20

2-20 | Handling Paper

•

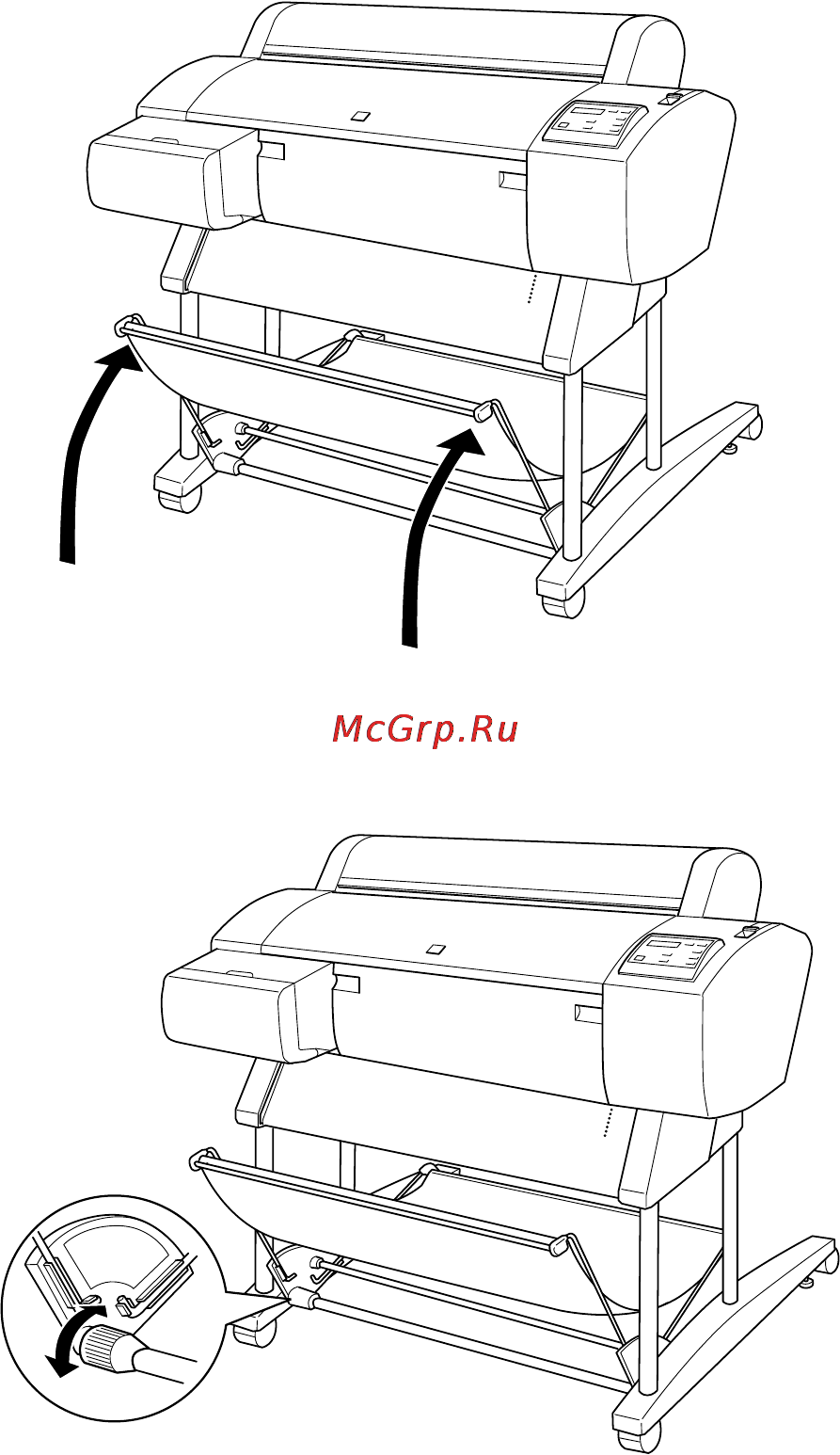

To catch printouts under the printer, lift the hammock rod all the way

up.

•

If the parts shown below become loose, tighten them by hand.
