Epson Stylus Pro 7000 [39/147] Inserting the spindle in the printer

2-5

Handling Paper | 2-5

Inserting the Spindle in the Printer

After you have loaded the paper roll onto the spindle, you need to insert it

into the printer, following these steps:

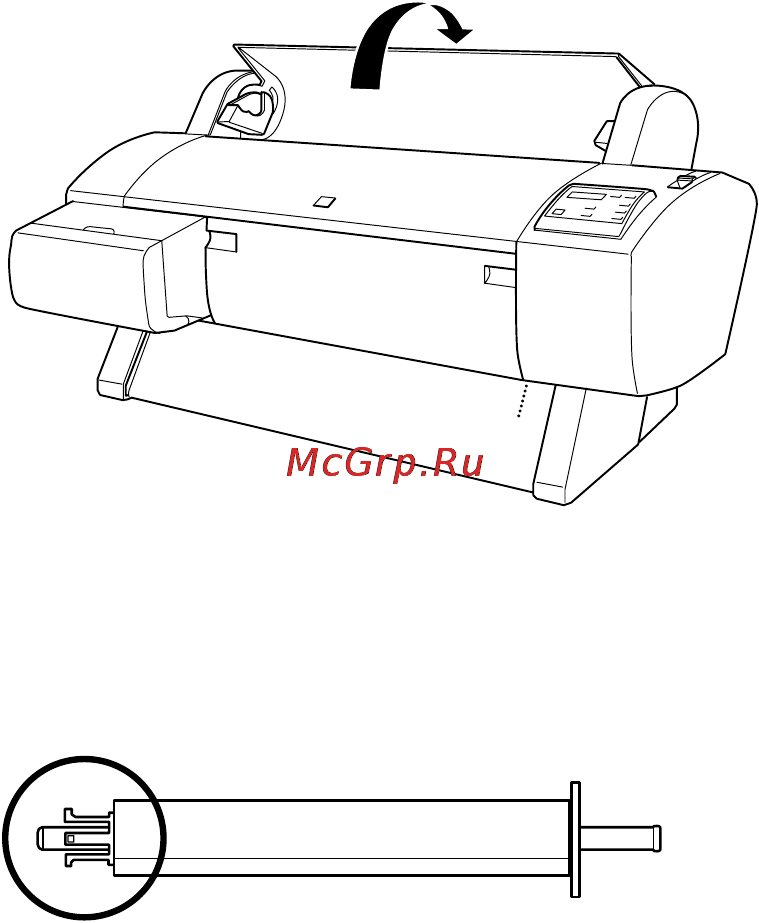

1. Open the roll paper cover.

2. Make sure the movable paper stop is firmly fixed into the left end of the

paper roll.
