2-6

2-6 | Handling Paper

3. Position the spindle so that the white end (with the fixed paper stop) is

on the right. Rest the spindle on the groove on top of the printer if

necessary.

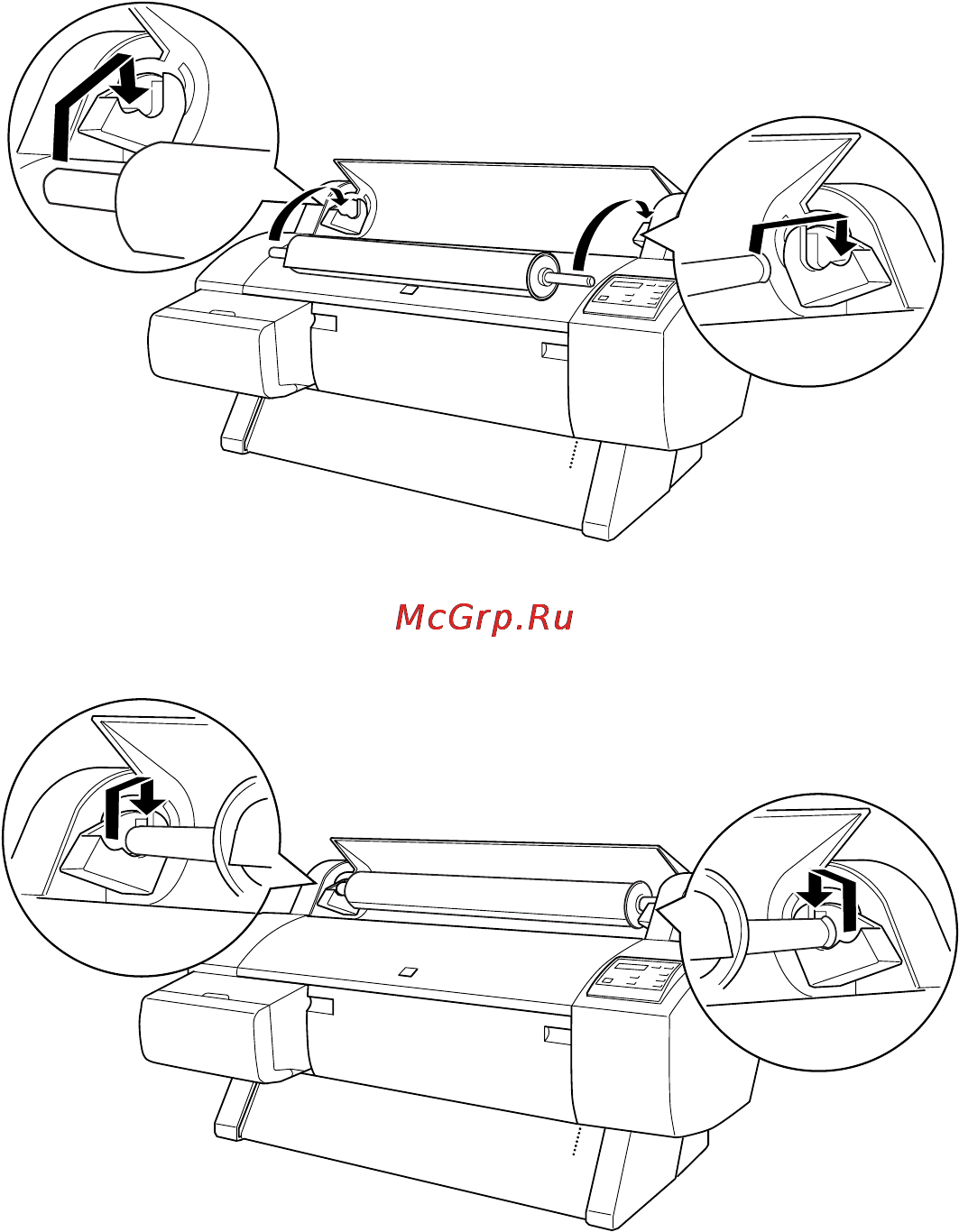

4. Lift the spindle and place it on the mounting brackets inside the printer.

white

black
