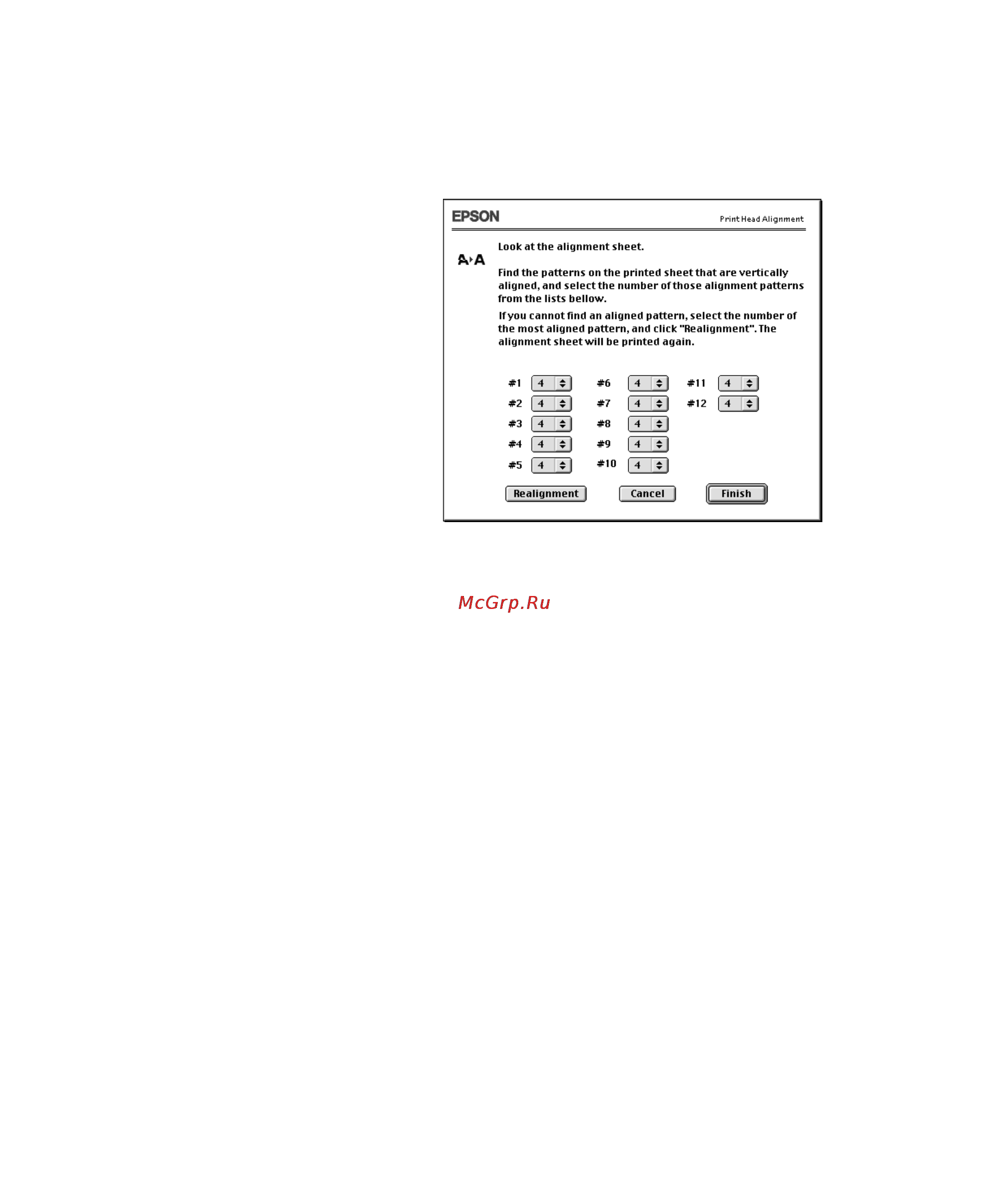

B-20 | Using EPSON Drivers and Utilities for Macintosh

6. Select the row you chose in step 5 for each pattern (for example, row 4),

then click

Finish.

If the set with the smallest gap is unclear and can’t be selected, click the

Realignment

button and repeat from step 5.
