Epson Stylus Pro 9000 [80/143] Clearing paper jams

4-11

Resolving Problems | 4-11

•

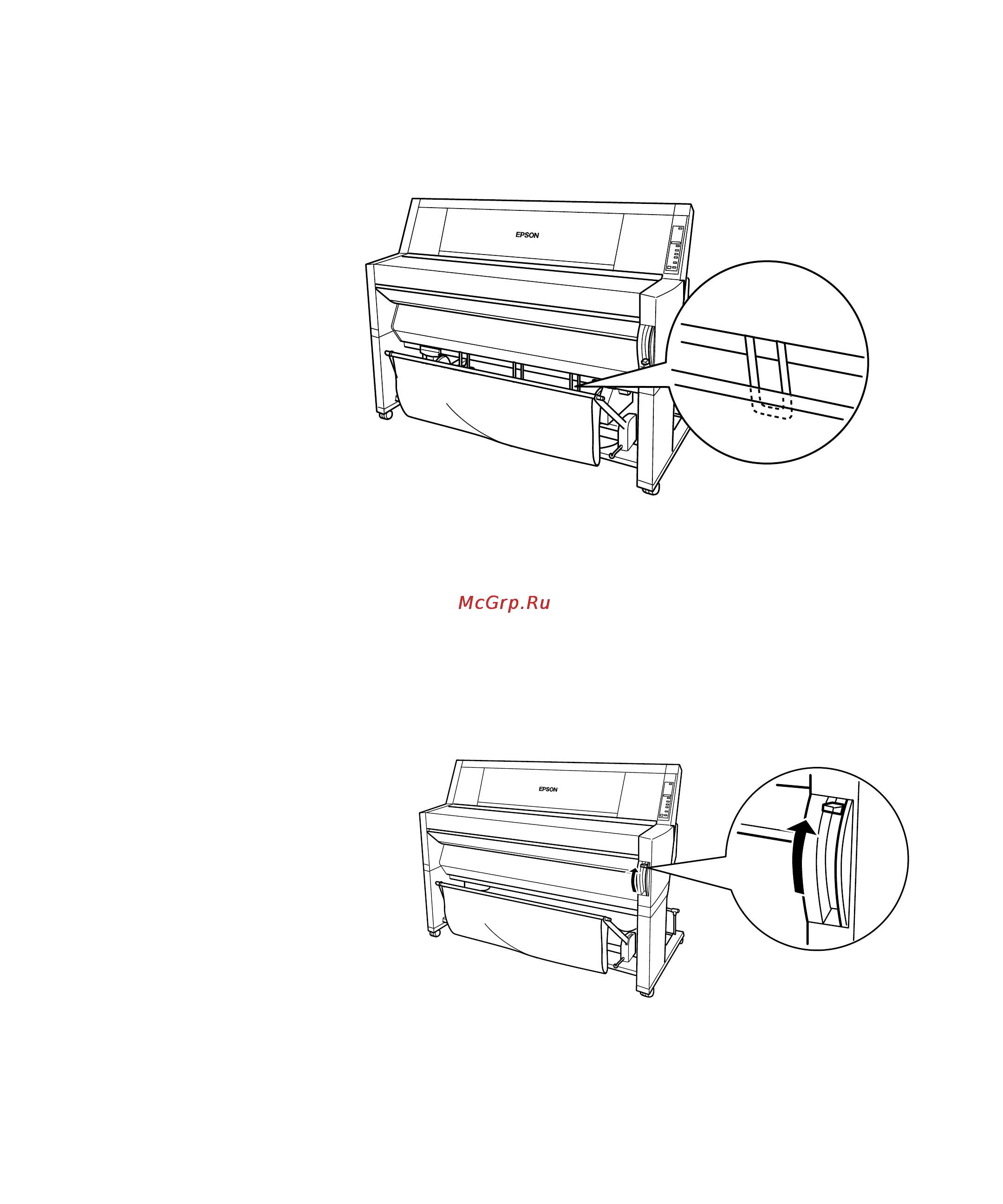

If you have the paper hammock set up below the printer, extend the

paper guides so that they rest on the back of the hammock.

Clearing Paper Jams

When paper gets jammed in the printer, printing stops and you see a

PAPER

JAM

message on the control panel display. Follow these steps to clear paper

jams:

1. If roll paper is jammed, cut it by hand at the paper slot.

2. Pull the paper set lever all the way up to release the jammed paper.
