1-11

Handling Paper | 1-11

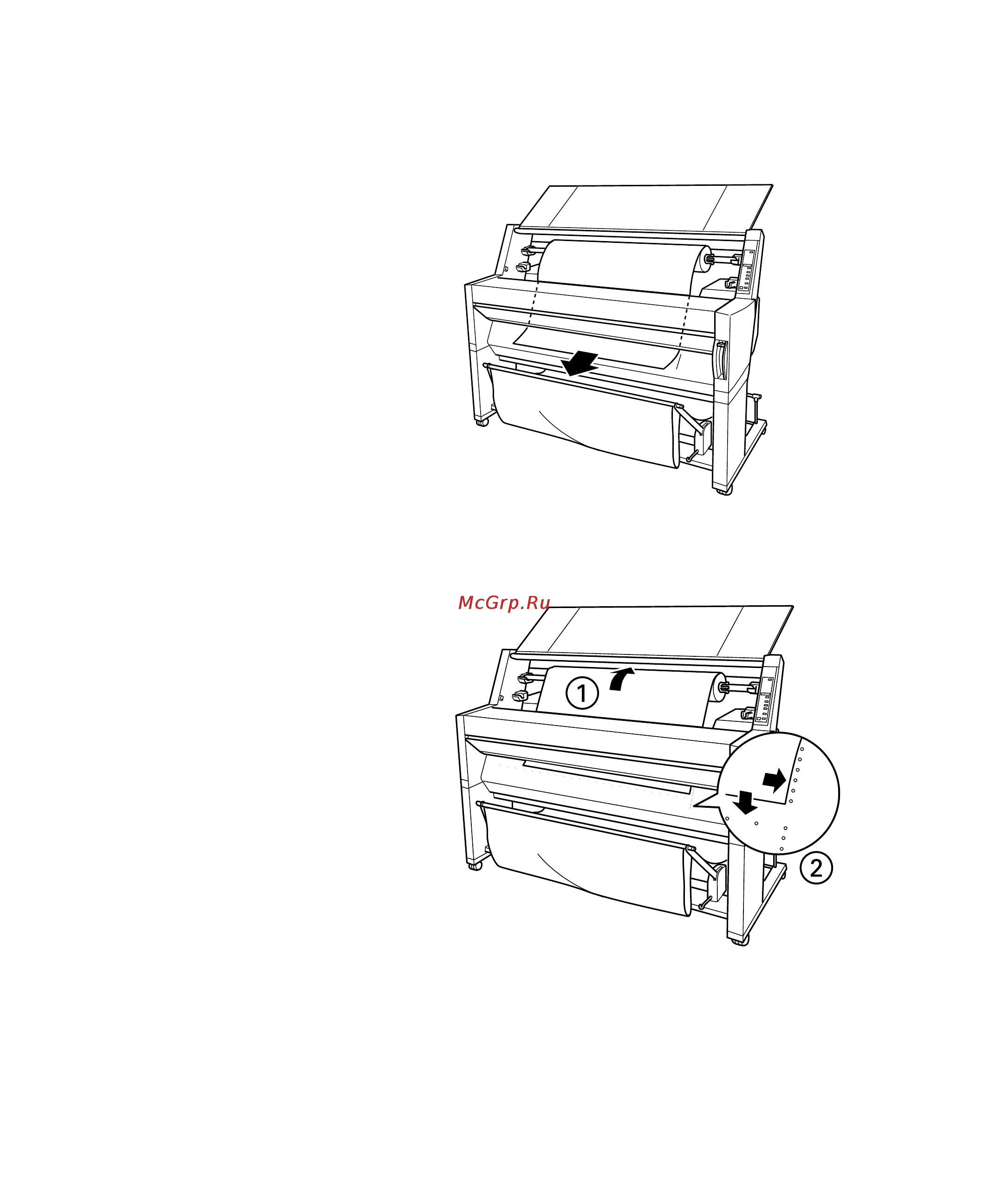

4. Pull the paper down so it extends all the way through the slot.

5. Turn the roll back to remove the slack. Then align the paper with the

two rows of holes.
