3-7

Maintaining and Transporting the Printer | 3-7

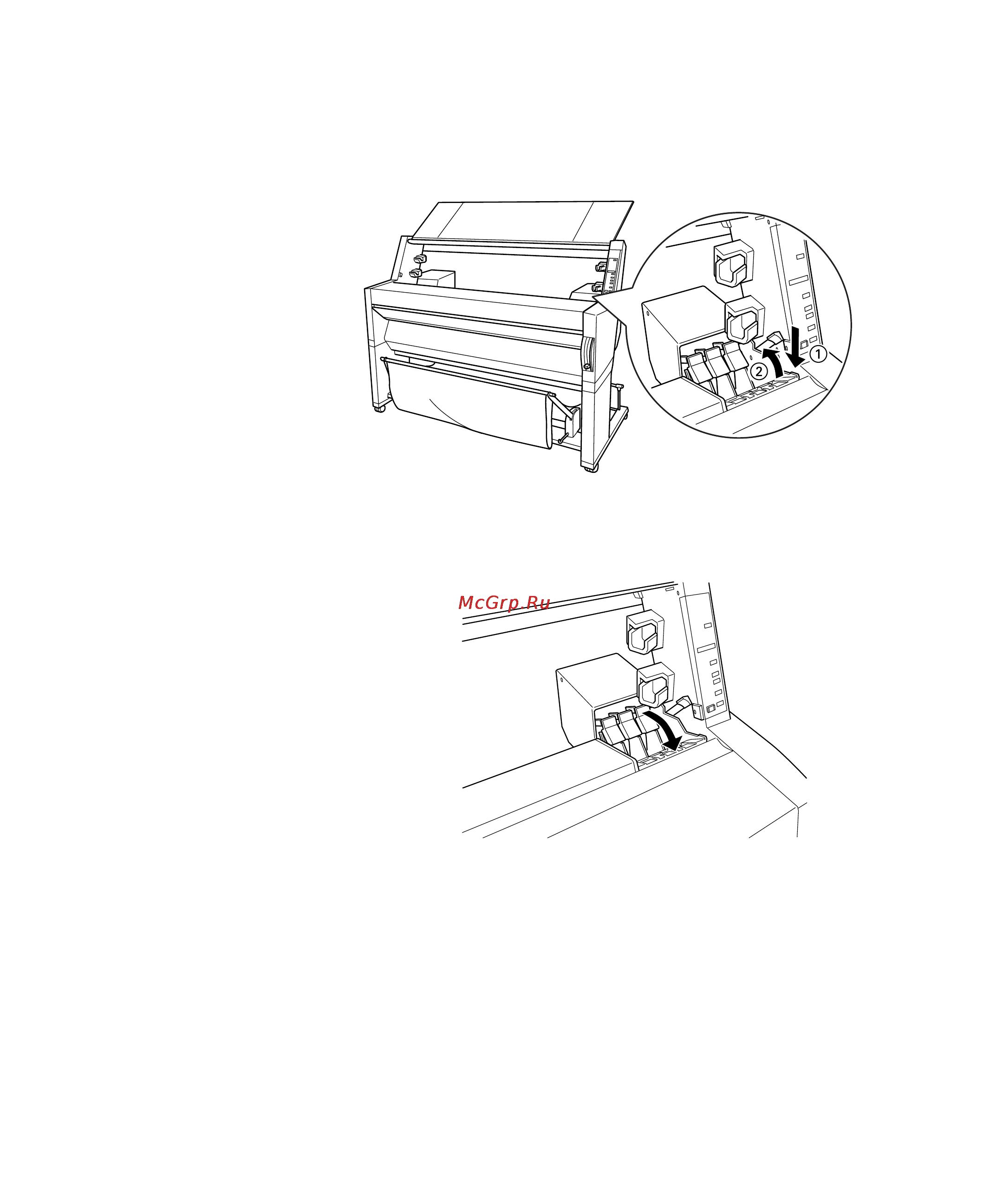

3. Push the lever down and let it “bounce” back up to open the ink

compartment cover.

INK COMPART. OPEN

appears on the display.

4. Locate the slot containing the empty ink cartridge (corresponding to the

Ink Out

light). Pull the clamp forward.
