3-17

Maintaining and Transporting the Printer | 3-17

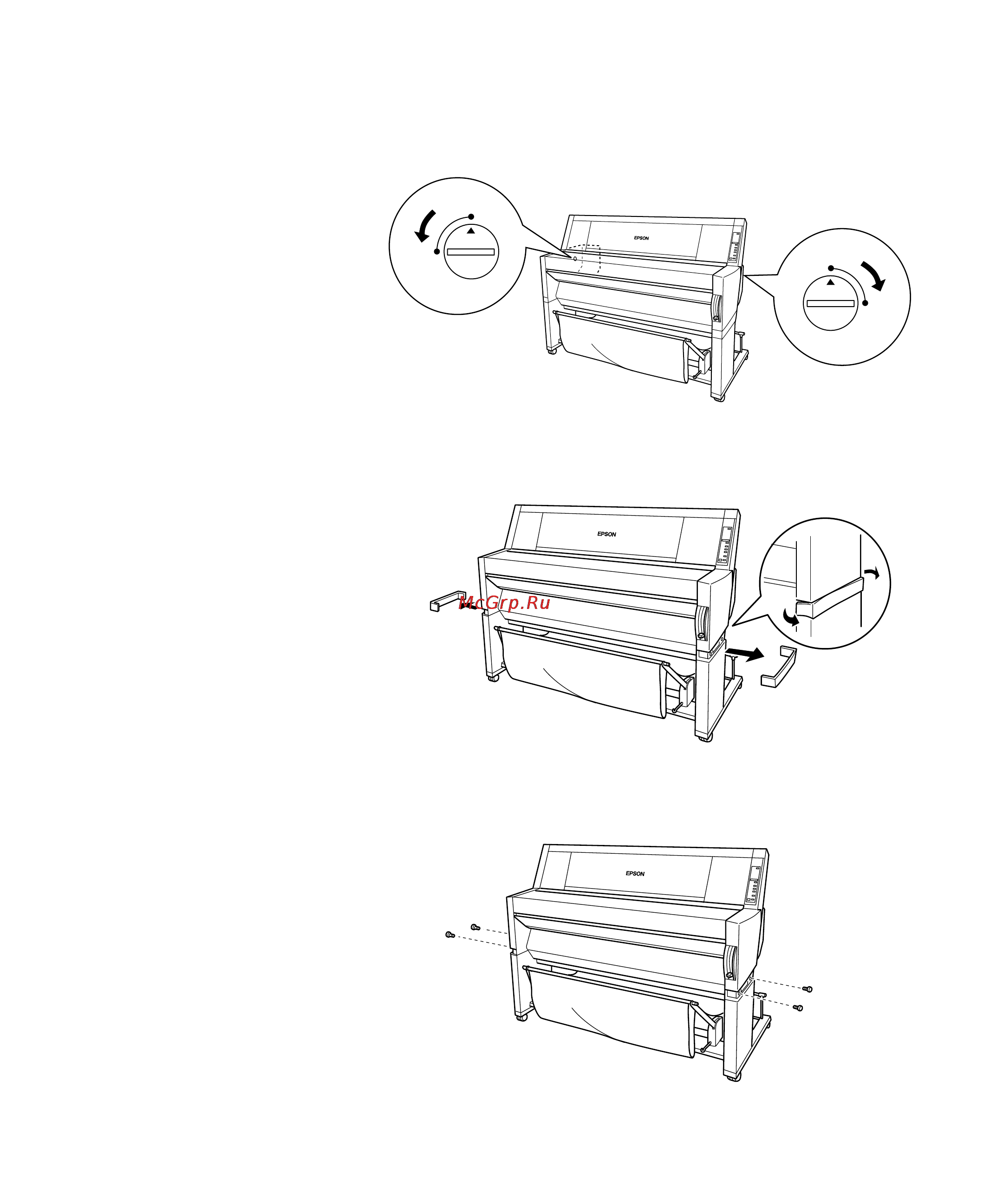

4. Close the ink valve locks on each side of the printer.

5. Remove the left and right side joint cover plates by spreading the ends

and pulling outward. Keep the cover plates in a safe place.

6. While holding the printer unit, remove the screws from the left and

right sides. Keep the screws in a safe place.
