4-13

Resolving Problems | 4-13

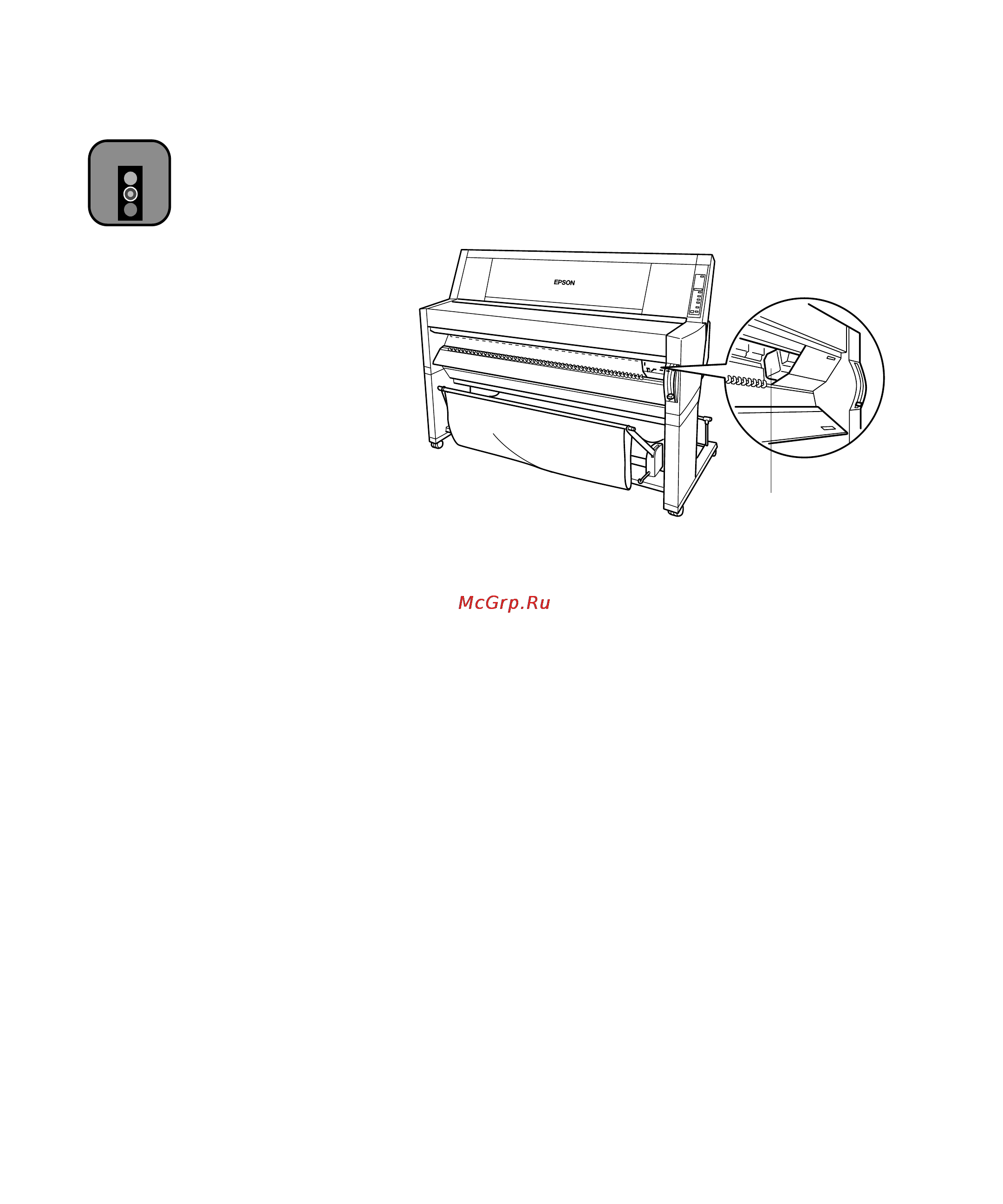

7. If you’re not going to continue printing, make sure the print head is in

the home (far right) position, as shown below. If it’s not, turn the

printer on, wait until the print head moves to the home position, then

turn off the printer.

Caution

If the print head is not

left in the home position,

print quality may decline.

print head
