English Instruction Sheet
Page 12
Replacing the Battery
WWarning
To avoid false readings, which could lead to possible
electric shock or personal injury, replace the battery
as soon as the battery indicator (
M) appears in the
display.

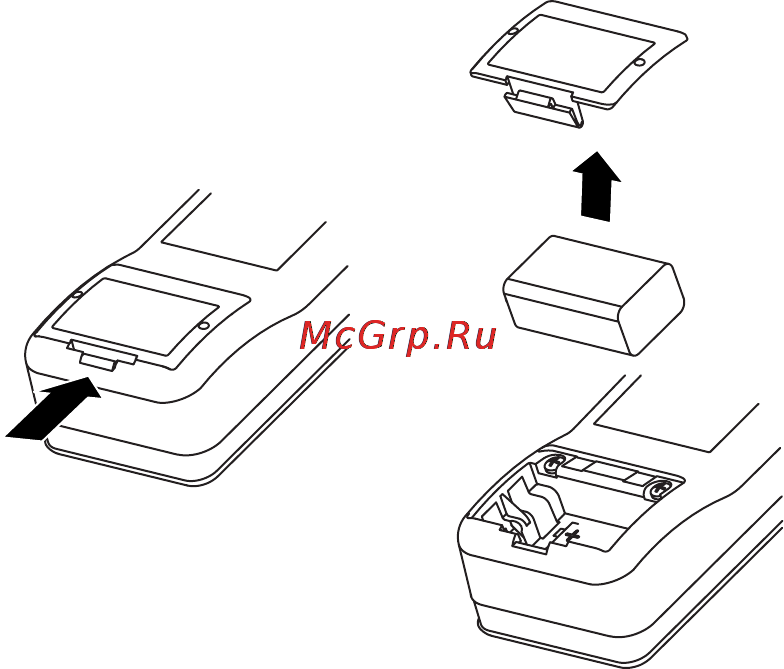

rt07f.eps
