English Instruction Sheet
Page 8
Changing the Current Span
The calibrator’s current output span has two settings:
• 4 mA = 0 %, 20 mA = 100 % (default)
• 0 mA = 0 %, 20 mA = 100 % (optional)
To change and save the current output span in a nonvolatile
memory (retained when the power is turned off), press U while
turning on the calibrator to mA.

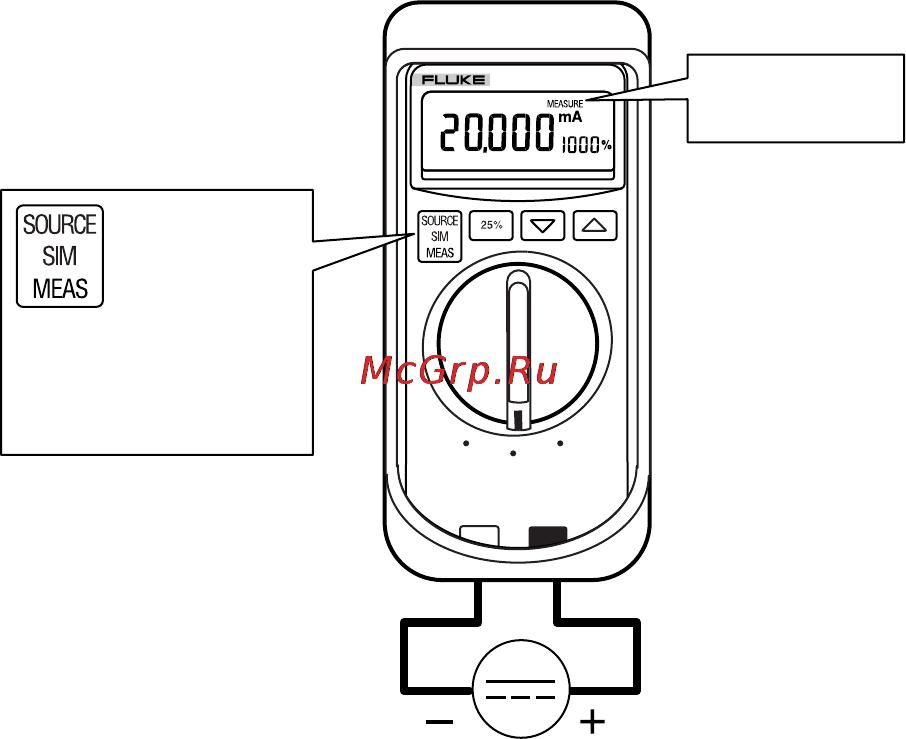

Measuring dc mA
OFF
COM
+
705
LOOP CALIBRATOR
SOURCE
SIMULATE
MEASURE
VDC
mA
SpanCheck
Loop Power
Measure
Press so that Measure
is on display.
rt03f.eps
