MULTISTAGE CENTRIFUGAL PUMPS COMPACT

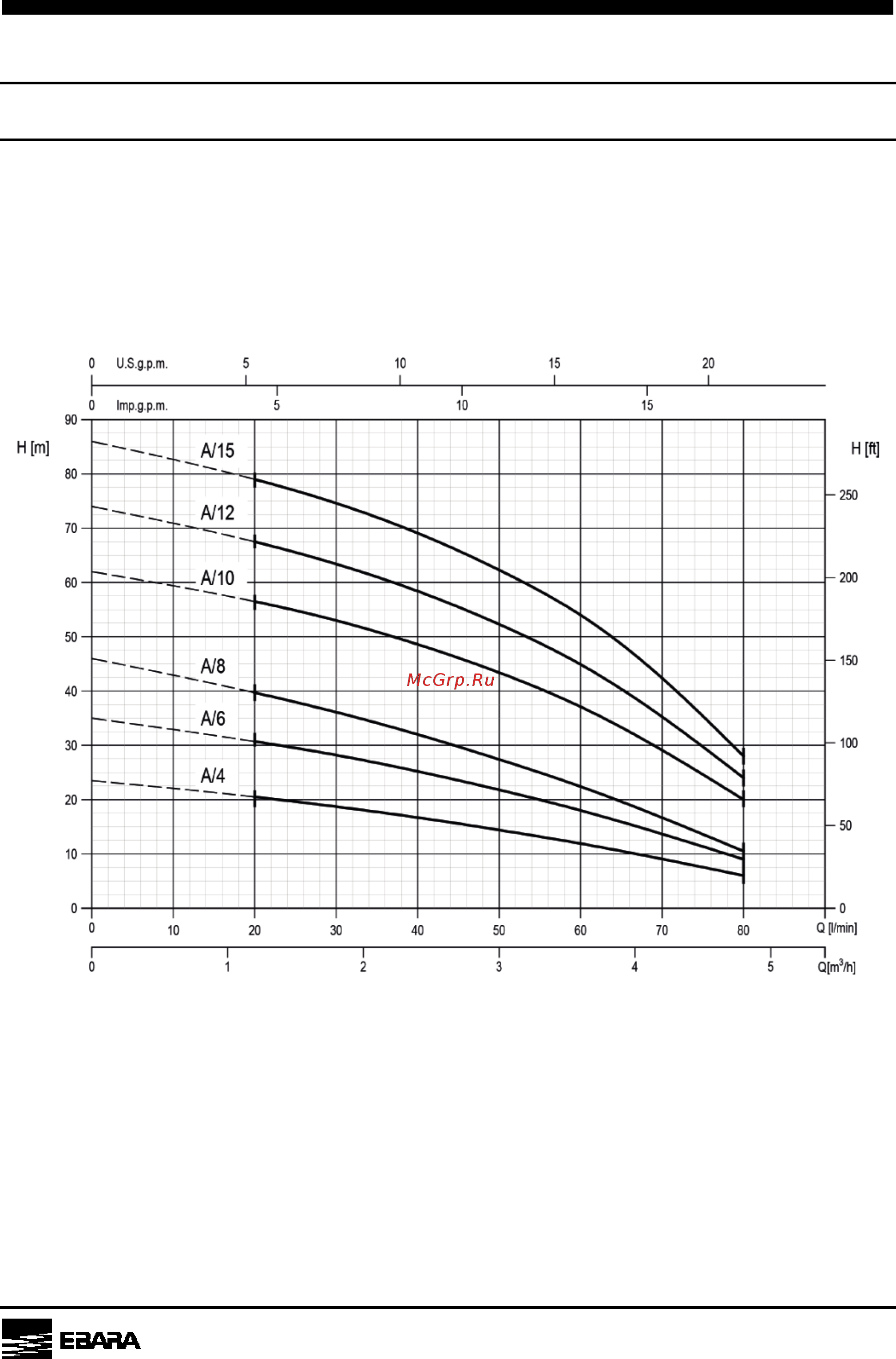

PERFORMANCE CURVE 50Hz
203
EBARA Pumps Europe S.p.A.
Rev. J
COMPACT A/4 (0.3 kW) - Impeller diameter = 104 mm
COMPACT A/6 (0.44 kW) - Impeller diameter = 104 mm
COMPACT A/8 (0.6 kW) - Impeller diameter = 104 mm
COMPACT A/10 (0.75 kW) - Impeller diameter = 104 mm
COMPACT A/12 (0.9 kW) - Impeller diameter = 104 mm
COMPACT A/15 (1.1 kW) - Impeller diameter = 104 mm
Rotation speed ≈ 2800 min
-1
Test standard: ISO 9906:2012 - Grade 3B
