MULTISTAGE CENTRIFUGAL PUMPS COMPACT
CONSTRUCTION 50Hz
300
EBARA Pumps Europe S.p.A.
Rev. J

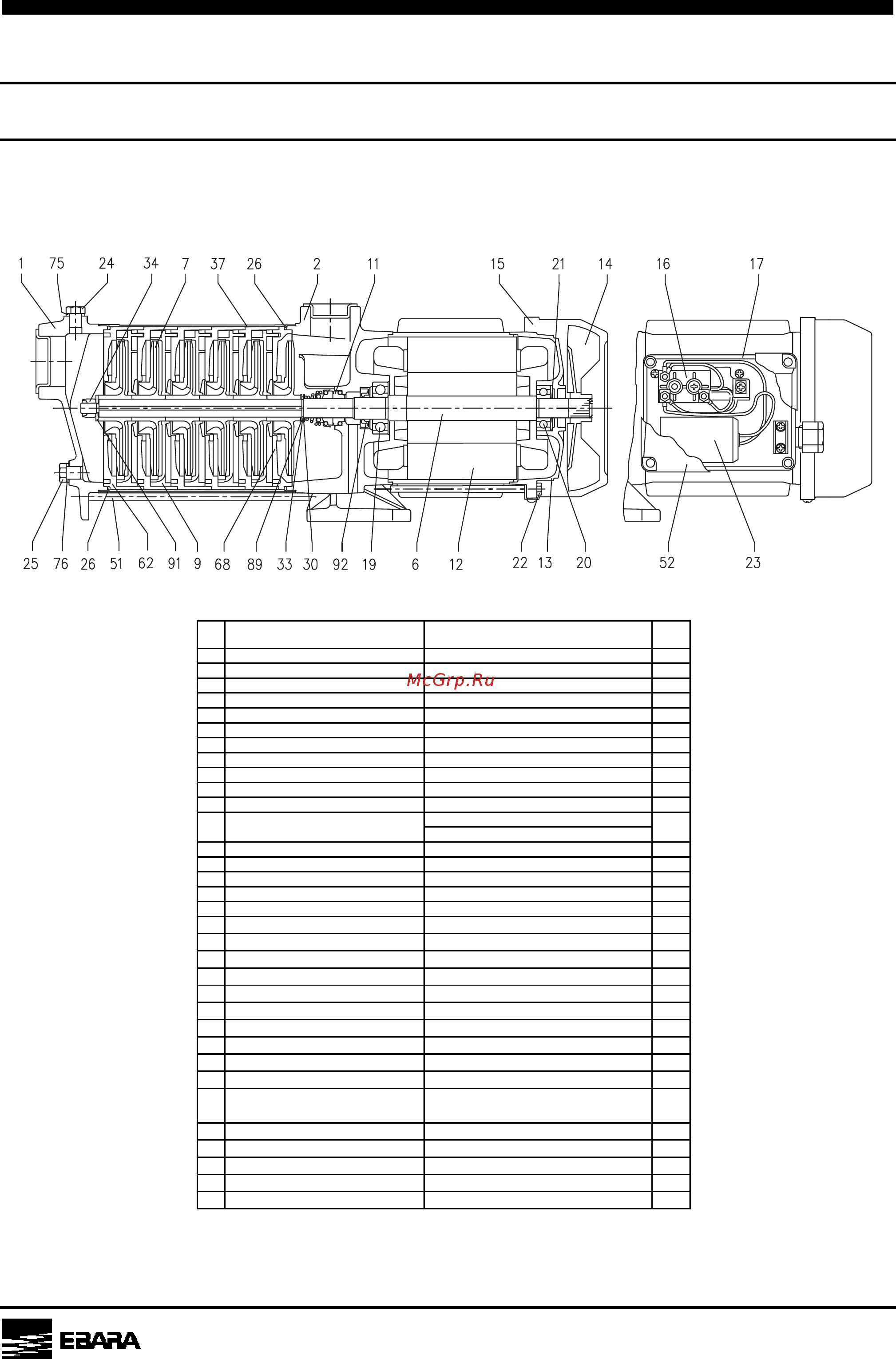

SECTIONAL VIEW
[1] Only for single phase
[2] See MECHANICAL SEAL page 301
[3] See QUANTITY FOR MODEL page 302
N° PART NAME MATERIAL Q.TY
1
Suction casing
G20
1
2
Delivery casing
G20
1
6
Shaft w ith rotor
AISI 416
1
7
Impeller
PPE+PS Glass Fibre Reinforced
[3]
9
Diffuser
PPE+PS Glass Fibre Reinforced
[3]
11
Mechanical seal
[2]
Carbon/Ceramic/NBR
1
12
Motor frame w ith stator
-
1
13
Motor cover
Aluminium
1
14
Fan
PP
1
15
Fan cover
Fe P04 Zincate
1
16
Terminal board
-
1
Aluminium
PP [1]
19
Pump side ball bearing
-
1
20
Fan side ball bearing
-
1
21
Adjusting ring
Steel C70
1
22
Tie rod
Fe 42 Zincate
4
23
Capacitor
[1]
-
1
24 Priming plug Brass 1
25 Drain plug Brass 1
26 O-ring NBR 2
30 Washer AISI 304 1
33 Seeger ring AISI 304 1
34 Impeller nut AISI 304 1
37 External pump casing AISI 304 1
51 Tie rod Fe P04 Zincate 4
52 Capacitor box [1] PP class V-0 1
62 Stage housing PPE+PS Glass Fibre Reinforced [3]
68 Stage
PPE+PS Glass Fibre
Reinforced/PTFE
1
75 Washer AISI 304 1
76 Washer AISI 304 1
89 Washer AISI 304 1
91 Washer AISI 304 1
92 Lip seal - 1
17 Terminal box cover 1[2]
