MULTISTAGE CENTRIFUGAL PUMPS COMPACT
CONSTRUCTION 50Hz
301
EBARA Pumps Europe S.p.A.
Rev. J

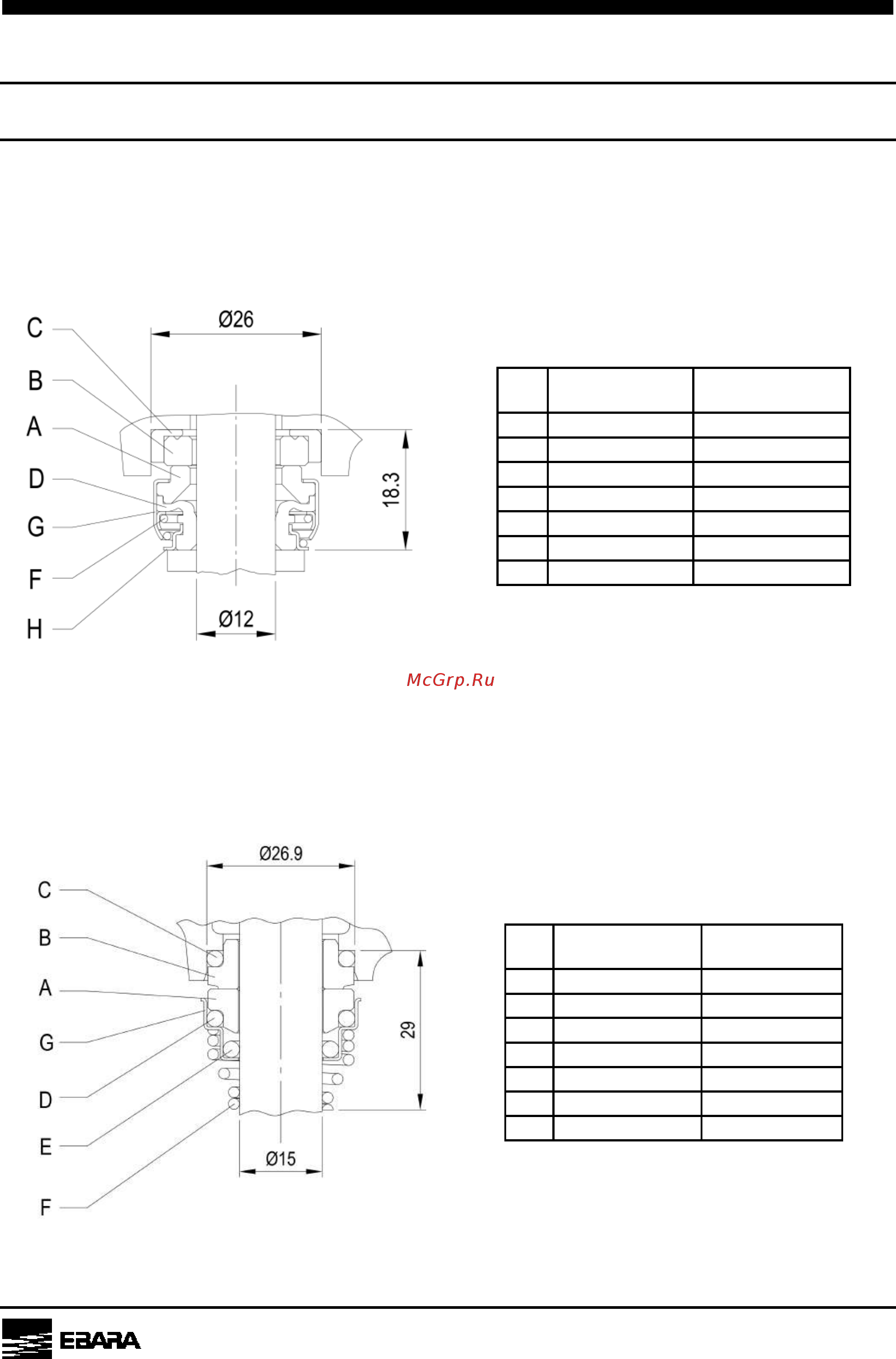

MECHANICAL SEAL
UP TO 0.6 kW
REF PART NAME
MATERIAL
Standard version
A Rotary seal ring Carbon Graphite
B Stationary seal ring Ceramic
C Gasket NBR
D Bellows NBR
F Self driving spring AISI 304
G Frame AISI 304
H Retainer ring AISI 304
0.75 kW AND ABOVE
REF PART NAME
MATERIAL
Standard version
A Rotary seal ring Ceramic
B Stationary seal ring Carbon Graphite
C O Ring NBR
D O Ring NBR
E O Ring NBR
F Self driving spring AISI 316
G Frame AISI 304
