10
TASCAM DR-100MKIII
2 – Names and functions of parts
g
Input levels
These show the input level setting values.
Basic menu operation procedures
The operation procedures for both the MENU and FUNCTION
screens are basically the same.
Here we explain MENU screen operations using dual recording
settings as an example.

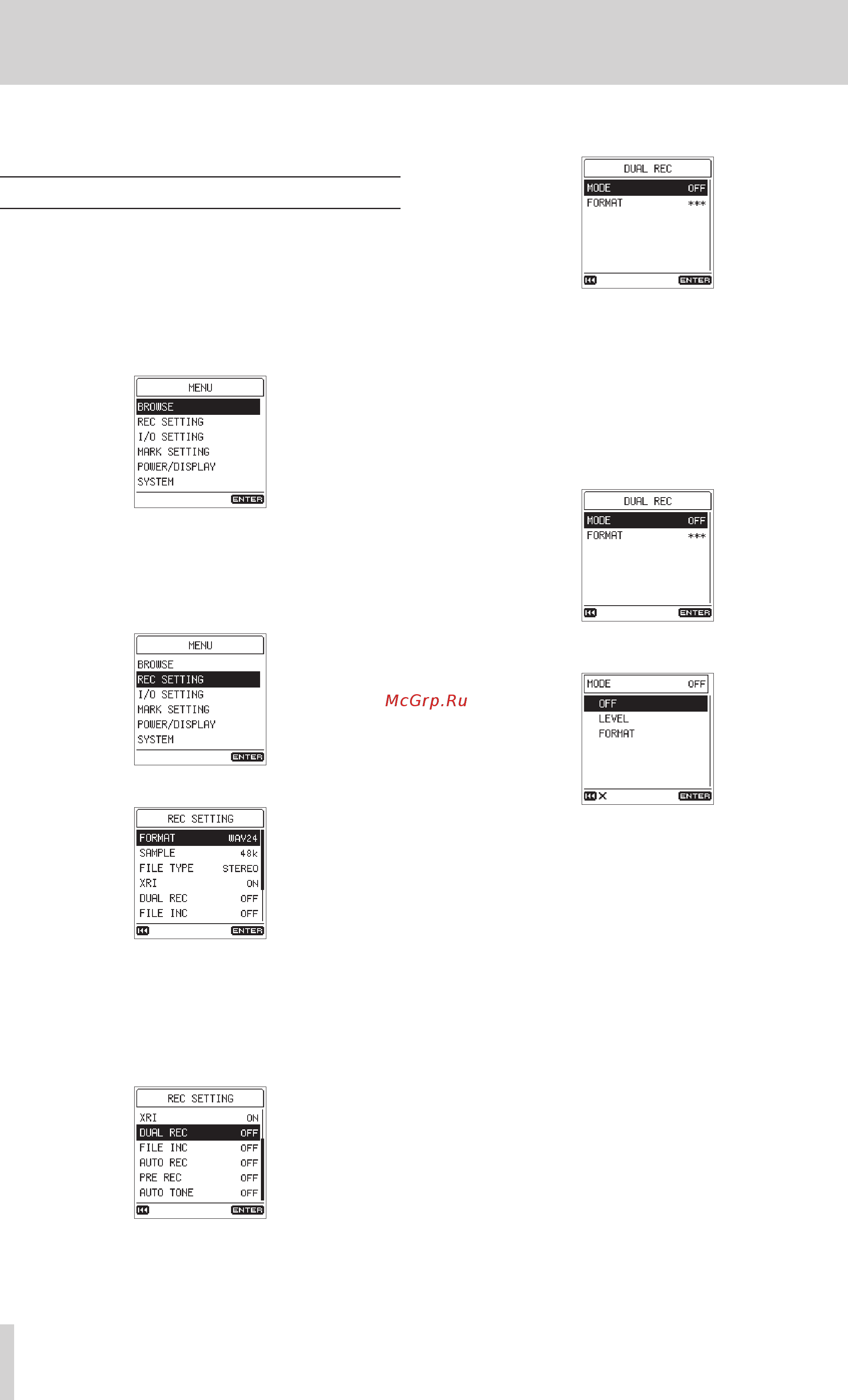

1. Open the MENU screen.
When the Home Screen is open, press the MENU button to
open the MENU screen.
o Press the HOME button to return to the Home Screen.
2. Open the REC SETTING screen.
Turn the wheel to move the cursor to the menu item you
want to change (REC SETTING in this case), and press the
ENTER/MARK button.
The REC SETTING screen opens.
o Press the . button to return to the previous screen.
o Press the HOME button to return to the Home Screen.
3. Open the DUAL REC screen.
Turn the wheel to move the cursor to the item you want to
change (DUAL REC in this case), and press the ENTER/MARK
button.
The DUAL REC screen opens.
o Setting values that cannot be changed because of the
operation mode, for example, are shown as ***.
o Press the . button to return to the previous screen.
o Press the HOME button to return to the Home Screen.
4. Change the setting.
Turn the wheel to move the cursor to the item you want
to change (MODE in this case), and press the ENTER/MARK
button.
The setting selection screen opens.
o This current setting is shown at the top right. Just
moving the cursor does not change the setting.
o Before pressing the ENTER/MARK button to confirm
the change, press the . button to cancel the change
and return to the previous screen.
o Press the HOME button to cancel the change and
return to the Home Screen.
o Press the MENU button to cancel the change and
return to the MENU screen.
o Press the ENTER/MARK button to confirm the change
and return to the previous screen.
