6
TASCAM DR-100MKIII

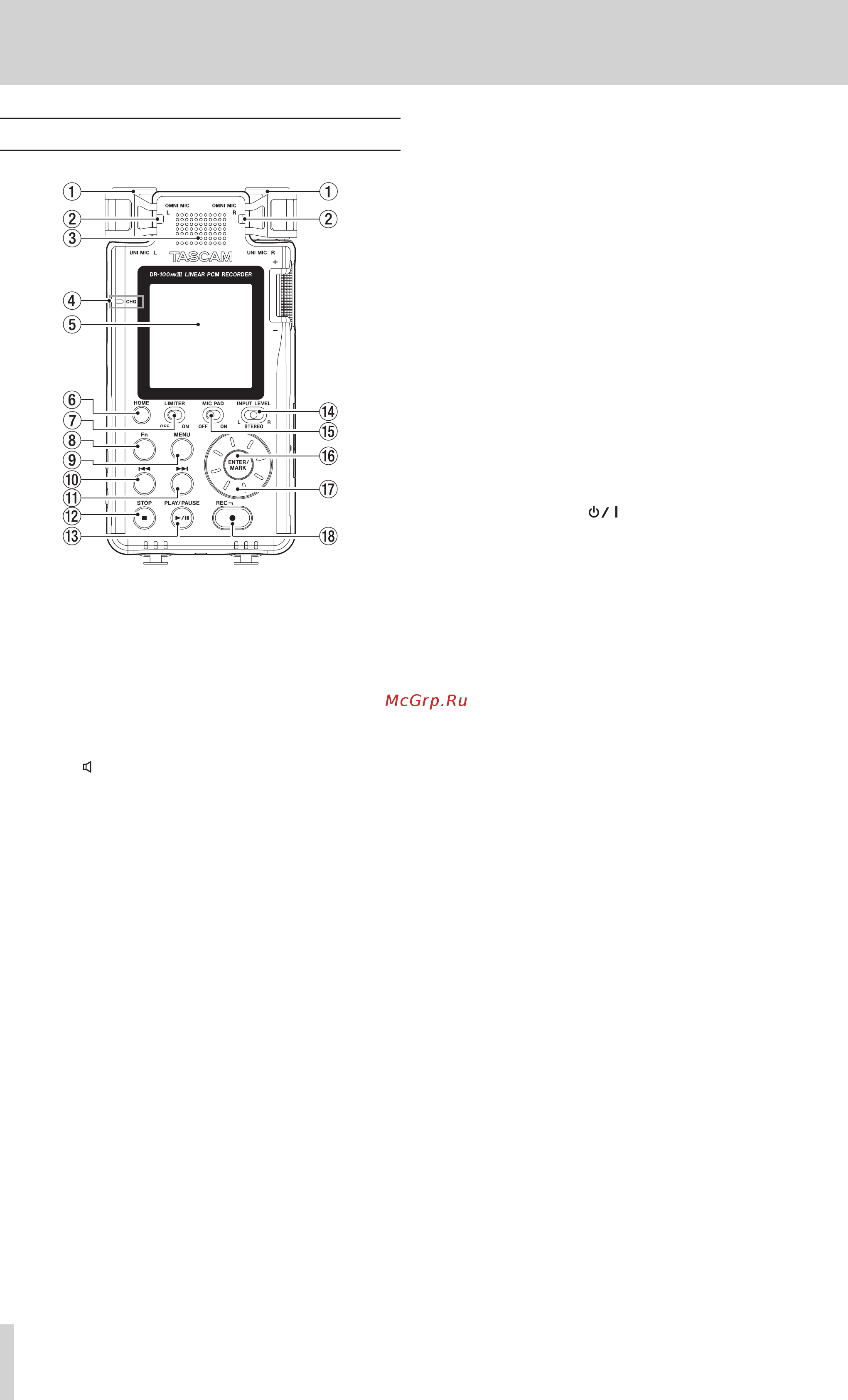

2 – Names and functions of parts
Top
1 UNI MIC L/R (built-in directional stereo mic)
This built-in mic is a stereo electret condenser microphone.
2 OMNI MIC L/R (built-in omnidirectional stereo mic)
This built-in mic is a stereo electret condenser microphone.
3 Built-in speaker (mono)
Use this built-in speaker to listen to recordings.
Sound will not be output from the speaker in the following
conditions.
o The (speaker) switch is set to OFF
o Recording/recording standby
o When headphones are connected
4 CHG (charge) indicator
This lights orange when the built-in battery is charging and
becomes green when charging completes. (See “Using the
built-in battery” on page 14.)
5 Display
Shows a variety of information.
6 HOME button
When any other screen is open, press this button to return to
the Home Screen.
7 LIMITER switch
This enables the limiter. (See “Using the limiter” on page
23.)
8 Fn button
When the Home Screen is open, press to open the FUNCTION
screen. (See “Basic menu operation procedures” on page
10.)
9 MENU button
When the Home Screen is open, press to open the MENU
screen. (See “Basic menu operation procedures” on page
10.)
When the MENU screen is open, press this button to return to
the Home Screen.
0 . button
When the Home Screen is open, use to skip files and search
backward. Press this button while pressing and holding the
ENTER/MARK button to move to the previous mark.
When a menu is open, use this to move between screens
and move the cursor.
q / button
When the Home Screen is open, use to skip files and search
forward. Press this button while pressing and holding the
ENTER/MARK button to move to the next mark.
Use to create a new file manually (divide) while recording.
When a menu is open, use this to move between screens
and move the cursor.
w STOP [8] button
Press during playback to pause playback at the current
position.
Press when paused to return to the beginning of the
playback file.
Press when recording or in recording standby to stop
recording.
Press and hold the (power) button for at least 10
seconds while pressing this button to force the unit to turn
off (enter standby).
e PLAY/PAUSE [7/9] button
When the Home Screen is open and the unit is stopped,
press this button to start playback.
Press when playing to pause playback.
When a file is selected on the Browse Screen, press this
to return to the Home Screen and play that file from the
beginning.
r INPUT LEVEL switch
Select which inputs are affected by operation of the input
level knob.
t MIC PAD switch
Use to change input sensitivity.
y ENTER/MARK button
When using a menu setting screen, press to confirm the
selected item.
Press to add marks manually when recording or playing
back.
Press the . or / button while pressing and holding this
button to move to the previous or next mark, respectively.
(See “Moving between marks (mark skipping)” on page
39.)
u Wheel
Use to select items and change values on setting screens.
Use also to change the file playback position.
i REC [0] button/REC indicator
When stopped, press this button to put the unit into
recording standby. The REC indicator will start to blink.
Press when recording to start recording standby.
