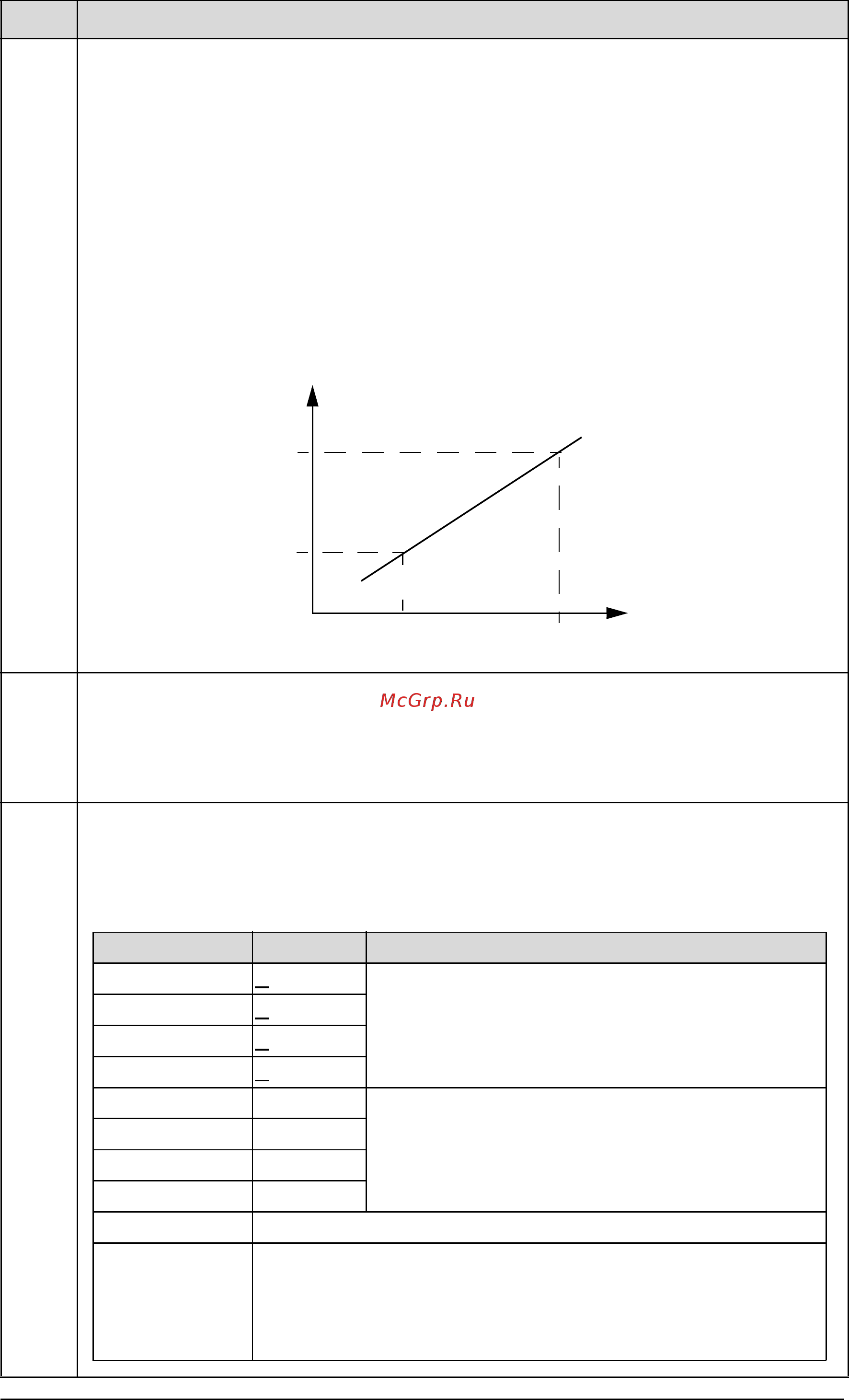

258 Parameter listing and descriptions
ACH550-01 User's Manual
3402 SIGNAL1 MIN -
Defines the minimum expected value for the first display parameter.
• Use parameters 3402, 3403, 3406, and 3407, for example to convert
a group 01 parameter, such as 0102
SPEED (in rpm) to the speed of a
conveyor driven by the motor (in ft/min). For such a conversion, the
source values in the figure are the min. and max. motor speed, and
the display values are the corresponding min. and max. conveyor
speed.
• Use parameter 3405 to select the proper units for the display.
Note: Selecting units does not convert values. Parameter is not
effective if parameter 3404
OUTPUT1 DSP FORM = 9 (DIRECT).
3403 SIGNAL1 MAX -
Defines the maximum expected value for the first display parameter.
Note: Parameter is not effective if parameter 3404
OUTPUT1 DSP FORM =
9 (
DIRECT).
3404 OUTPUT1 DSP FORM 0…9
Defines the decimal point location for the first display parameter.
• Enter the number of digits desired to the right of the decimal point.
• See the table for an example using pi (3.14159).
Code Description Range
Source
P 3407
P 3406
P 3403P3402
Display
value
value
3404 Value Display Range
0+
3 -32768…+32767 (Signed)
1+
3.1
2+
3.14
3+
3.142
4 3 0…65535 (Unsigned)
53.1
63.14
7 3.142
8 Bar meter displayed.
9 Direct value. Decimal point location and units of
measure are identical to the source signal.
Note: Parameters 3402, 3403 and 3405…3407 are
not effective.
