Start-up and control panel 77
ACH550-01 User's Manual

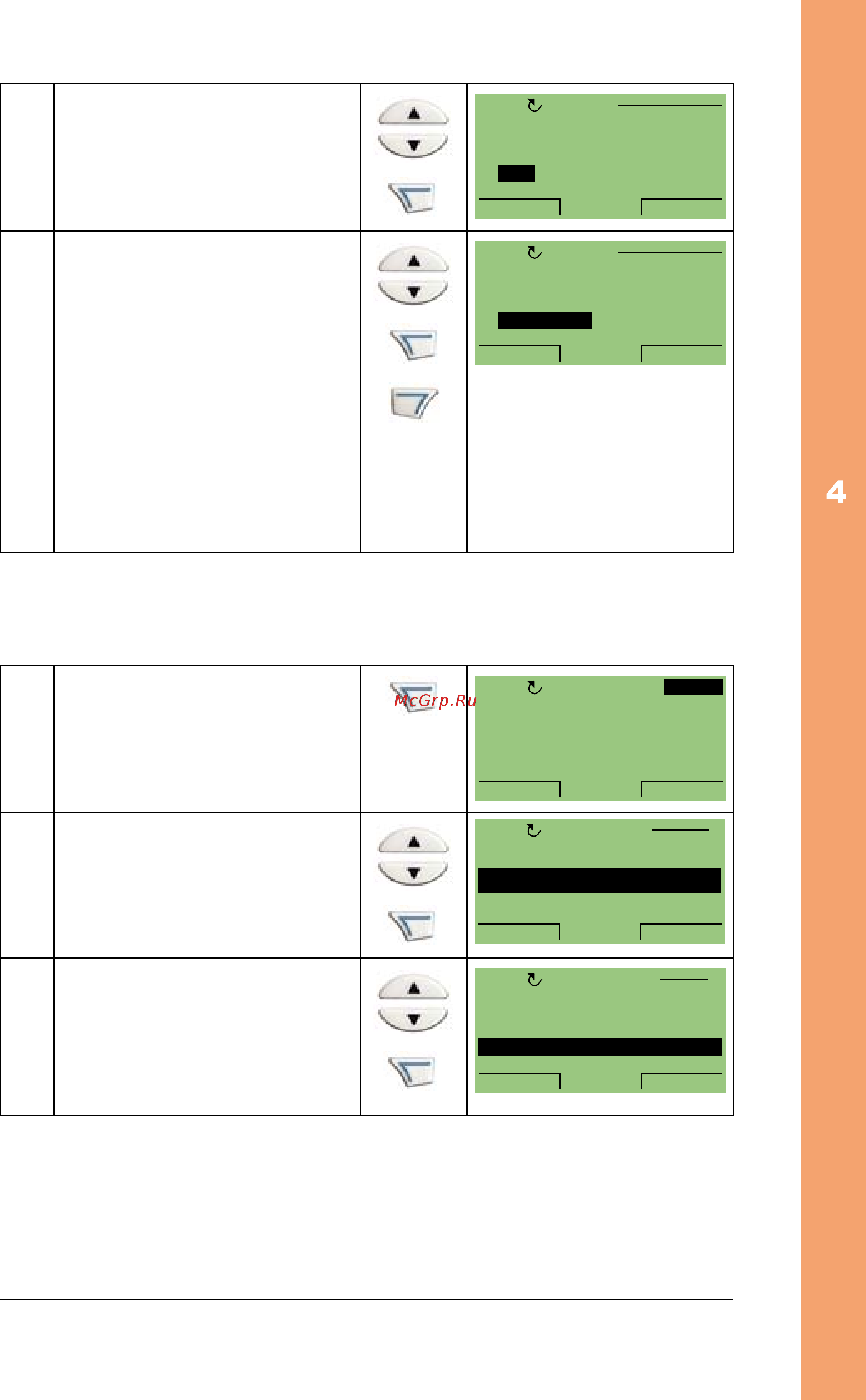

The Start-up assistant will guide you through the start-up.
To start an individual assistant from the menu, follow these
steps:
5 After selecting the macro,
specify whether you want to
use the mechanical HAND-
OFF-AUTO switch.
6 After completing a task, the
Start-up assistant asks if
you want to continue with
the next one. Press OK
(when Continue is
highlighted) to continue
with the next task, select
Skip with the UP/DOWN
keys and press OK to move
to the next task without
doing this one or press
EXIT to stop the Start-up
assistant.
1 Press MENU to go to the
main menu.
2 Select ASSISTANTS with
the UP/DOWN keys and
press ENTER.
3 Scroll to the assistant you
want to use (References 1
& 2 is used here as an
example) with the UP/
DOWN keys and press
SEL.
Do you want to
use mechanical
HAND-OFF-AUTO switch?
Yes
No
EXIT
OK00:00
OFF
CHOICE
Do you want to
continue with
Reference set-up?
Continue
Skip
EXIT
OK00:00
OFF
CHOICE
0 A
0 Hz
0 %0.
0.
0.
0.0HzOFF
MENU00:00
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
OFF
MAIN MENU 2
ASSISTANTS 4
EXIT
SEL00:00
OFF
Spin the motor
Commission drive
Application
References 1 & 2
Start/Stop Control
