Technical data 423
ACH550-01 User's Manual
Control panel (operator keypad) dimensions and
mounting
The control panel overall dimensions are shown in the table
below.

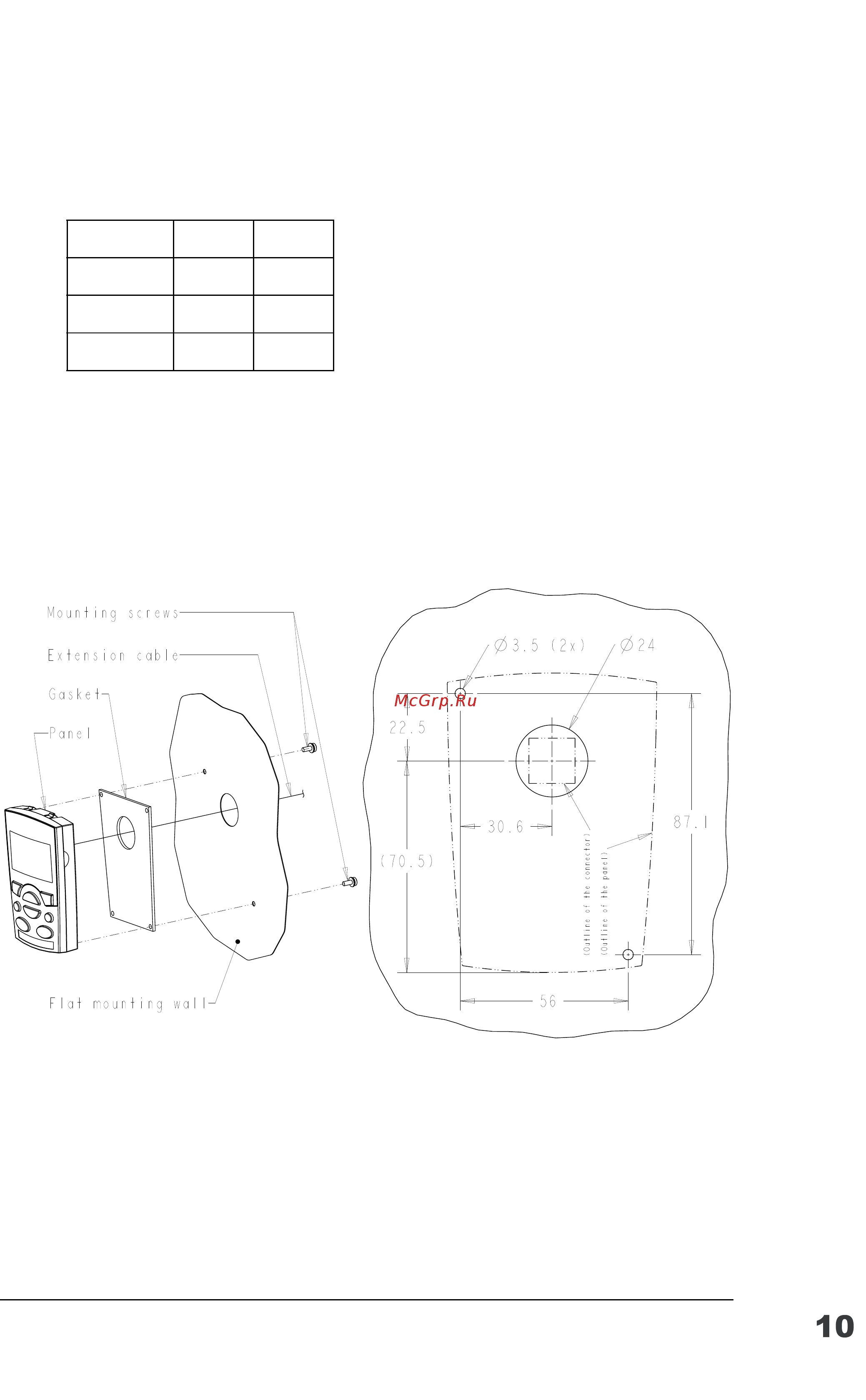

IP54 panel mounting kit
Use the panel mounting kit (option) to mount the panel on a
cabinet door to maintain the IP54 degree of protection. The kit
includes a 3-meter extension cable, gasket, mounting template
and mounting screws. The figure below shows how to mount the
control panel with the gasket.
mm in
Height 100 3.9
Width 70 2.8
Depth 20 0.8
