42 Installing the drive
ACH550-01 User's Manual
Mounting the drive (IP21)

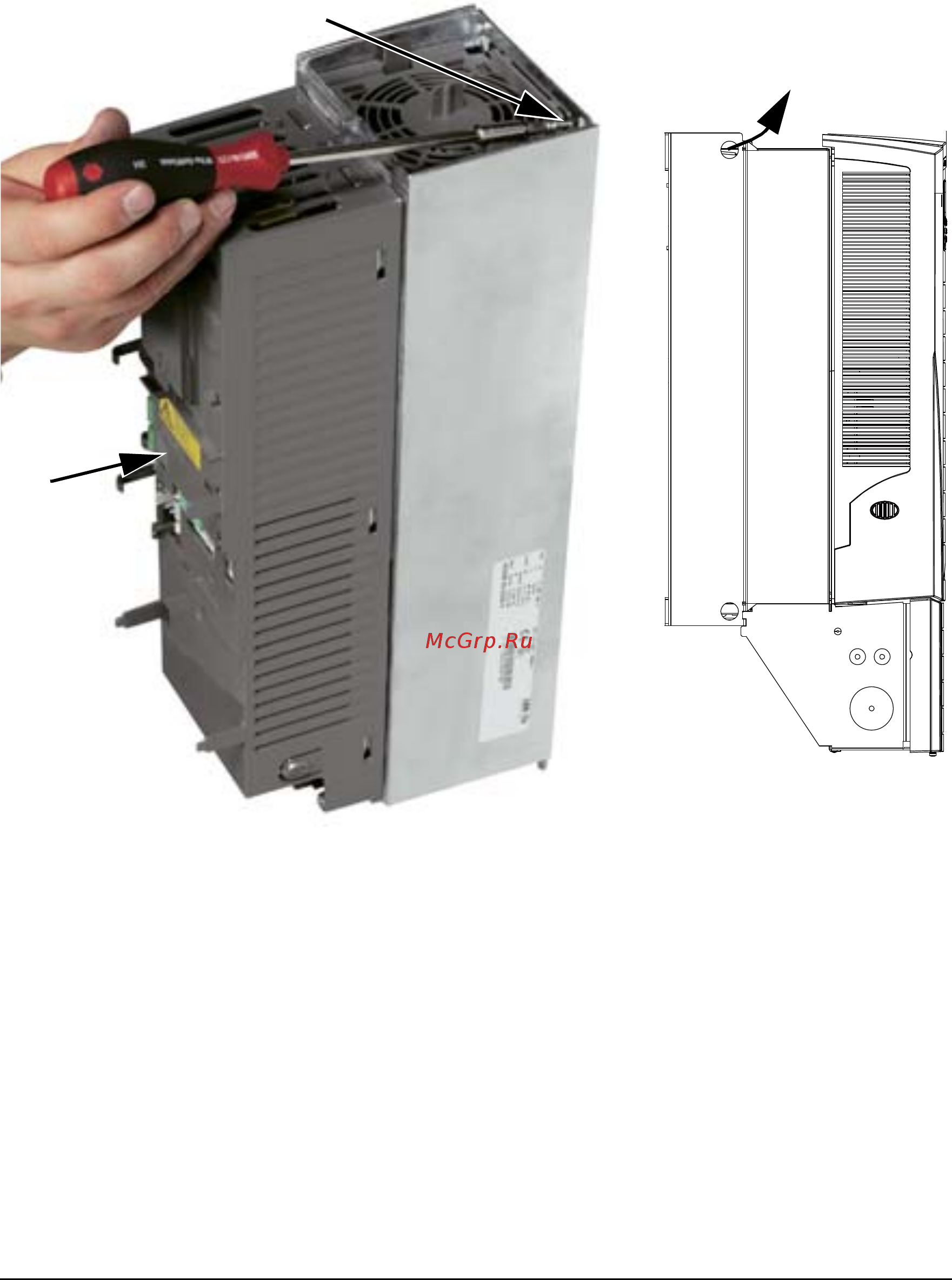

1. Position the ACH550 onto the mounting screws or bolts
1
and securely tighten in all four corners.
2. Warning stickers in different languages are supplied with
this manual. Attach a warning sticker in the appropriate
language on the inside plastic shell.
1
2
1
Lift R6 drives by
their lifting holes.
