Preparing for installation 39
ACH550-02 User’s Manual
Control cables
General recommendation
Use shielded cables, temperature rated at 60 °C (140 °F) or
above.

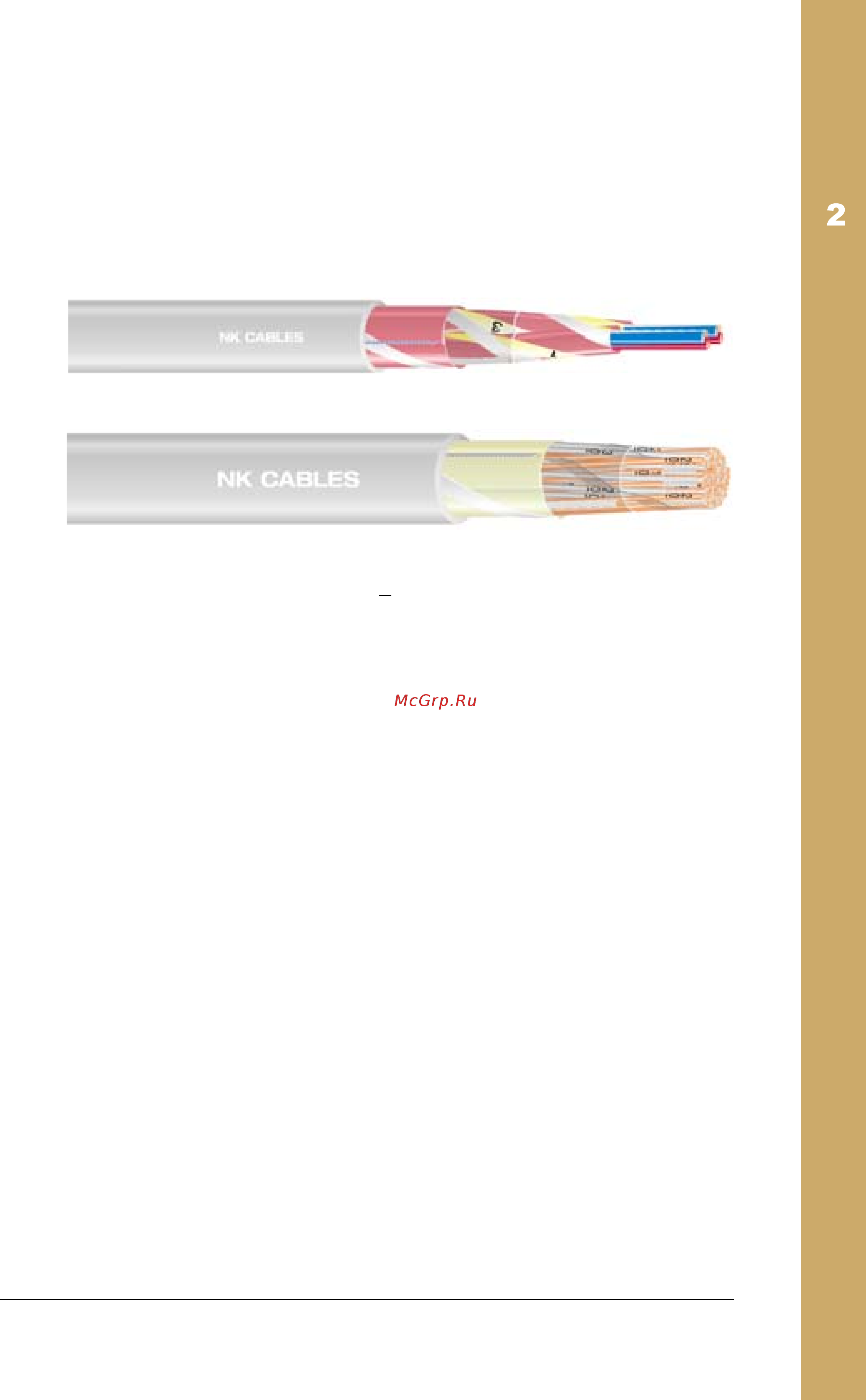

The figure below shows recommended cable shielding types.
Figures courtesy of Draka NK Cables. Copyright © 2003 Draka
NK Cables.
• Control cables must be shielded and of twisted pair type.
• The shield must be twisted together into a bundle (pigtail) not
longer than five times its width and connected to terminal
X1:1 (for digital and analogue I/O cables). For connecting the
shield wires of the RS485 cable, see the instructions (and
note 3) on page144.
Route control cables to minimise radiation to the cable:
• Route as far away as possible from the input power and
motor cables (see the figure on page 40).
• Where control cables must cross power cables make sure
they are at an angle as near to 90° as possible.
• Keep at least 20 cm (8 in) away from the sides of the drive.
• Run relay-controlled signals as twisted pairs (especially if
voltage > 30 V). Relay-controlled signals using less than
30 V can be run in the same cables as digital input signals.
• For relay signals 110/220 V use suitable cable type and keep
it away from other analogue or digital control cables.
Jamak by Draka NK Cables
Nomak by Draka NK Cables
Suitable for voltages <
75 V
